Name: Hardwired Car GPS Tracker 4G, 9 to 90V & Driver Behaviour Alerts
Brand: VIMEL
SKU: VIM-4GPS22
Price: 299.0 NZD
Availability: InStock

Hardwired Car GPS Tracker 4G, 9 to 90V & Driver Behaviour Alerts

$299.00 NZD

Quantity

Key Specs

Network

4G LTE, SIM card

Power

Hardwired, 9 to 90 V

Battery

60mAh backup

Live Tracking

App, web and SMS

Geofence Alerts

Enter and exit

Alerts

Driving behaviour

Estimated delivery 10 to 11 November Delivery Info Pay Options

Express Shipping, 2 to 3 Business Days

Safe and Secure Transaction

Tracked and Signed For

Discreet Packing and Delivery
Hassle-Free Warranty
Support From Real Specialists

Have a Question? Chat Now or Call Us

Description

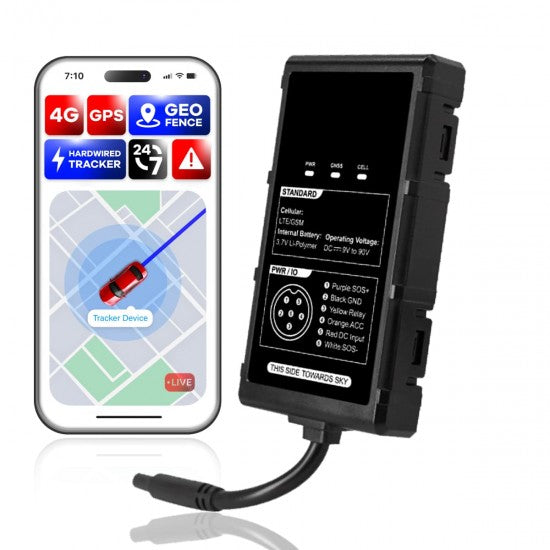

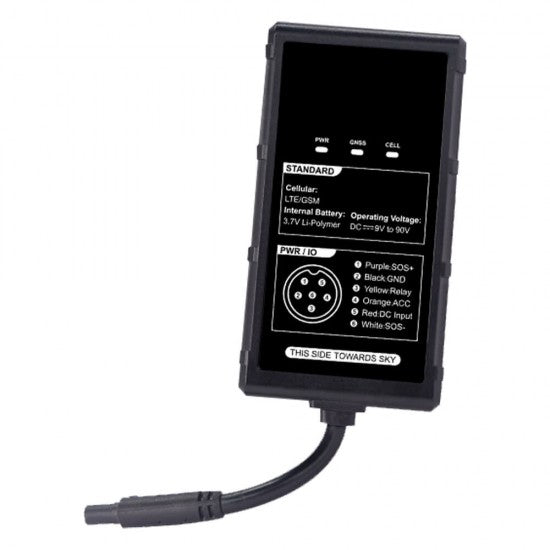

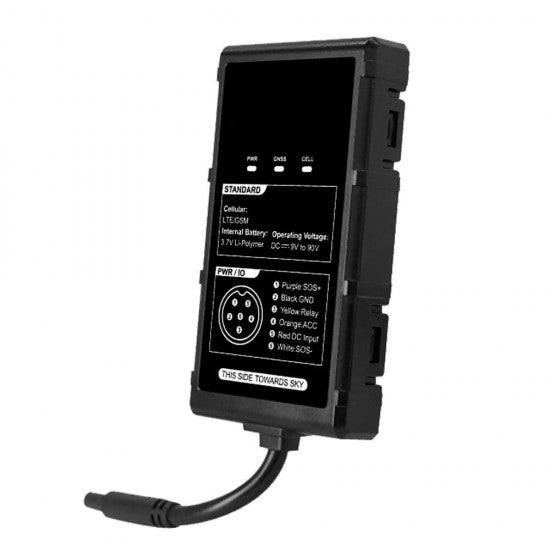

The VIM-4GPS22 hardwired 4G GPS tracker gives real-time vehicle location using GPS, BeiDou and mobile tower positioning. It runs permanently from the vehicle at 9 to 90V with ACC ignition sensing, and supports app, web and SMS tracking, remote immobilisation and a full alert set including harsh acceleration, braking and cornering. At 94 x 50 x 15mm and 69g it hides easily behind a panel.

Features

Multi-constellation accuracy: GPS + BDS + LBS deliver precise, reliable positioning in urban and remote areas.
Hardwired & ignition sensing: 24/7 power with ACC status so you know exactly when the engine starts or stops.
Remote immobilisation: Cut off and later resume the oil supply to help recover a stolen vehicle.
Comprehensive alerts: Receive notifications for low battery, vibration, over-speed, tamper/removal and geofence events.
Custom boundaries: Set geo-fence boundaries with a 1 to 99 km radius and get entry/exit alerts for controlled routes and yards.
Vehicle-ready design: IP65 water resistance and 9 to 90V input support discreet installs across cars, vans and trucks.

Applications

How It's Used on Vehicles

Install the VIM-4GPS22 behind the dash or in a protected cavity to monitor location live, set geofences for yards and routes, and trigger alerts or immobilisation on suspicious activity. Track from the mobile app, website, or by SMS with a Google Maps link.

How it Works

Wire it into the vehicle: A 9 to 90V input covers cars, trucks and heavy machinery from the same unit. At 94 x 50 x 15mm and 69 grams it tucks behind a panel out of sight.
Register the device: Add it in the app or the web portal and set the master number, then connect the ACC line so the tracker knows when the ignition is on.
Track and monitor driving: Position comes from GPS and BeiDou with mobile tower fallback, reported over LTE or GSM. Alongside location, the unit scores harsh acceleration, braking and cornering, which is the part fleet operators actually use.

Vehicle battery protection stops the tracker draining the vehicle when it is parked for a long period, and the 60mAh backup cell covers a short gap if power is cut.

Specifications

GSM: GSM900/DCS1800
LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD: B1/B3/B5/B7/B8/B20
GPS Positioning: GPS+BDS+LBS
Communication Network: LTE / GSM
GPS Signal: L1
Antenna: Built-in Internally
GNSS Accuracy: <10m
Working Humidity 5% - 95%
Input Voltage: 9-90VDC
Battery: 60MAh, 3.7V Li-Polymer Battery
Dimensions (L*W*H): 94.3mm*50.4mm*15.0mm
Weight: 69g
Driving Behaviour Analysis: harsh acceleration, braking, cornering
Vehicle Battery Protection: supported

Frequently Asked Questions

How is power supplied to the tracker?

The unit is hardwired to the vehicle's 9 to 90V supply and monitors ACC/ignition for start, stop events.

Can I immobilise the vehicle remotely?

Yes. Use the remote oil cut-off to disable the engine and resume it once the vehicle is secured.

What alerts can I receive?

The system supports low battery, vibration/tamper, over-speed and geofence entry/exit notifications.

How do I track if I don't have data?

You can query the device by SMS and receive a Google Maps link to its current location.

Is the tracker weather resistant?

Yes. The enclosure is rated IP65 for dust protection and water jets, suitable for automotive environments.

Customer reviews

No reviews yet

Bought this from us? Tell other customers how it went. Every review is checked by our team before it appears.

Write a review

Hardwired Car GPS Tracker 4G, 9 to 90V & Driver Behaviour Alerts

What's in the Box

In the box · 5 items

Main unitGPS Tracker
Relay Cable 4Pin
Relay Cable 4Pin
Power Cable
User Manual / User Guide
