Name: 4G Home Security System, Alarm Sensors, 1080p Camera & 96 Zones
Brand: VIMEL
SKU: VIM-ALARM4G-C
Price: 549.0 NZD
Availability: InStock

4G Home Security System, Alarm Sensors, 1080p Camera & 96 Zones

$549.00 NZD

Quantity

Key Specs

Network

4G SIM and 2.4GHz WiFi

Video Quality

Full HD 1080p with night vision

Motion Detection

12 m PIR, 25 kg pet immunity

Siren

80dB built into the hub

Expansion

Up to 96 wireless devices

Backup Power

3000mAh rechargeable

Estimated delivery 10 to 11 November Delivery Info Pay Options

Express Shipping, 2 to 3 Business Days

Safe and Secure Transaction

Tracked and Signed For

Discreet Packing and Delivery
Hassle-Free Warranty
Support From Real Specialists

Accessories

VIM-SMOKEIPWireless Smoke Detector for Alarm Hub, 85dB & 3 Year Battery $59.00
VIM-WDSENSORDoor and Window Sensor for Alarm Hub, 150m Link & Tamper Alert $39.00
VIM-PIRSPIR Motion Sensor for Alarm Hub, 12m Range & Pet Immune $39.00
VIM-SECCAlarm System Camera 1080p, IP66, Night Vision & Local Recording $89.00
VIM-IPCAMS4KPoE Security Camera 4K, ONVIF, 4G Backup, Siren & Floodlight $209.00

Add what you need. It goes straight to your cart.

Have a Question? Chat Now or Call Us

Description

Your power goes out in a storm and your broadband goes with it. A WiFi-only alarm is now a plastic box on the wall.

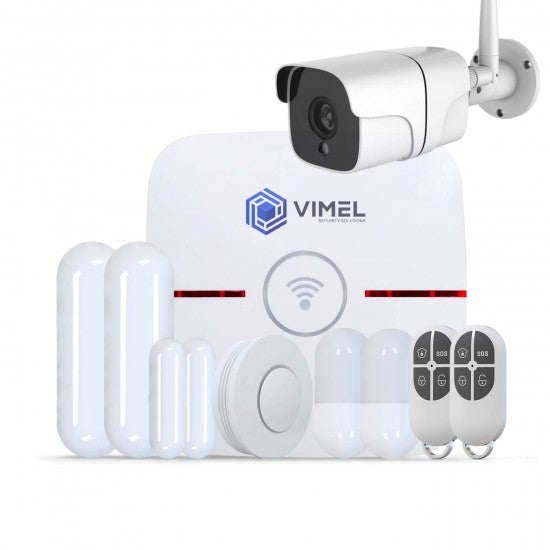

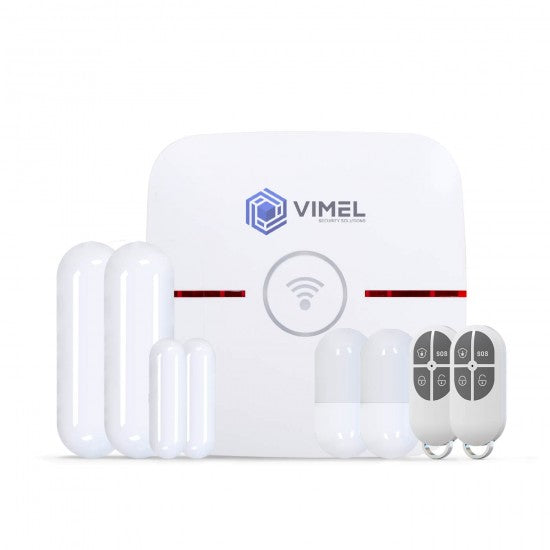

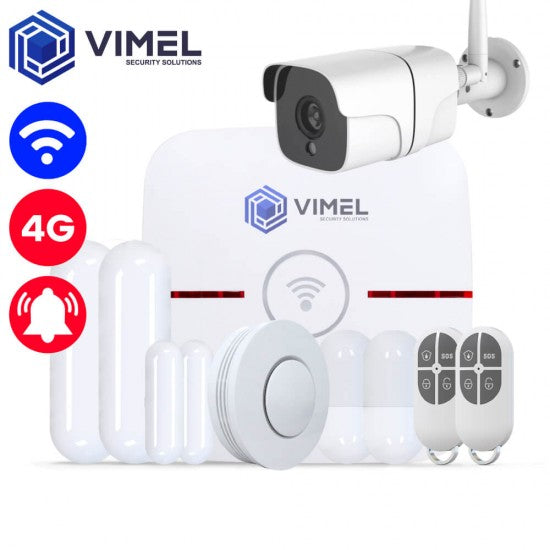

The VIM-ALARM4G-C hub runs on both a mobile SIM and your home WiFi, so when the router drops the 4G path keeps sending. The kit covers a typical three bedroom house out of the box: two door and window contacts, two PIR motion sensors that ignore pets under 25 kg, a 1080p outdoor camera with infrared night vision, and two keyring remotes. It mounts with screws and pairs from your phone, and the hub holds up to 96 devices as you add rooms.

Features

100% Wireless System
Central Hub
DIY Installation - Easy Installation
Dual Network Support - 4G + WIFI
Direct Router Connection - Ethernet Cable
Install SIM Card to Access 4G Network
ONVIF Support - Connect other cameras to the system
Access Remotely From Anywhere and Anytime
Unlike WIFI system, 4G+WIFI system can send alert messages even power is cut and no WIFI connection
Alarm Trigger - SIM Relays Images to the Cloud from up to 4 cameras when the Internet connection is disabled
Connect Remotely and Monitor LIVE using your Mobile Phone
Receive Alarm Notifications directly to your Smart Phone
Operate and Modify the Alarm System using Application (Android / iOS)
Loud Siren - Two Ways of Audio Communication (Speaker + Microphone)
Wall Mount Support
Backup Rechargeable Batteries in case of power outage

Window/Door Sensor

Designed for Doors and Windows
Connects Wirelessly to the Central Hub
Magnetic Attachment
Alarm Trigger on Magnetic Separation
Two Ways of Audio Communication
Built-in Tamper Protection
Fast Pair-Up directly from your Smart Phone

PIR Sensor

Thermal Detection - Body Heat Sensor
Motion Detection - Movement/Motion Sensor
Pet-Friendly Sensor - Up to 25KG
Sleep Mode - Battery Efficiency
12m Detection Distance
Two Ways of Audio Communication
Built-in Tamper Protection
Fast Pair-Up directly from your Smart Phone

Security Camera

WIFI Camera with DC power adapter
Pairs Up with the Central Hub - Sends Alarm
Central Hub Sends Alarm Notifications from the Camera
Live Video P2P - iPHONE/iPAD/ANDROID/ REMOTE MONITORING SUPPORT
Full HD 1080p Video Recording - LIVE Monitoring
Offline Mode Recording Feature - Micro SD Card
Multi-user view support
Motion Detection Recording
Infrared Night Vision Recording
Water Resistant - IP66 Level Outdoor Camera

Remote Controller

Convenient Access and Use
Keyring Attachment
Arm and Disarm Instantly
Home Button - Arm Specific Types of Sensors
SOS Button - Designed for the Elderly and Kids

Applications

Real-World Scenarios

The Family Home While You Are Away

You are on holiday and the house is empty for two weeks. Any movement inside means something is wrong.

Arm the full system from the app before you leave. The two PIR sensors cover the hallway and living room, the door and window contacts guard the entry points, and the camera watches the driveway. If a contact breaks or a sensor triggers, the 80dB siren sounds and your phone gets the alert with camera footage attached, even if the power to the house has been cut.

A Rental Property Between Tenants

An empty rental is a target, and it is rarely somewhere you can drive to at short notice.

The hub runs on a Spark, One NZ or 2degrees SIM, so it does not need the property's broadband connected. Fit contacts to the front and back doors, put a PIR in the main hallway, and point the camera at the entry. You get told the moment anything opens.

A Small Workshop or Garage

Tools and equipment sit unattended overnight in a building that often has no internet at all.

Run the system entirely on 4G. The camera records to its own microSD card so footage survives even when the connection does not, and the hub relays images to the cloud when an alarm fires. Two remotes let staff arm and disarm without opening the app.

How it Works

Plug the hub in, insert a Spark, One NZ or 2degrees SIM, and connect it to your router with the supplied ethernet cable if you want the WiFi path as well.
Pair each sensor and the camera to the hub from your phone, then assign them to zones so you can arm the perimeter at night and the whole house when you leave.
When a sensor trips, the hub sounds its 80dB siren and pushes an alert to every phone on the account over WiFi, falling back to 4G if the broadband is down.

Specifications

Central Hub

WIFI Frequency: 2.4Ghz
WIFI Protocol: IEEE802.11b/g/n
Wireless Network: FSK 433MHz
ONVIF Support
4G Module SIM card: supports Spark, One NZ or 2degrees
Internet Access Distance: 100m
Wireless Devices: 96
Siren Level: 80dB Sound
Alarm Current: 170mA
Standby Current: 100mA
Operating Temperature: -10°C ~ 60°C
Power Supply: Power Adapter 3.7V / Rechargeable Batteries 3000mAH
Dimensions: 150mm(L) * 150mm(W) * 30mm(H)

Window / Door Sensor

Wireless Frequency: 433MHz
Transmitting Distance: Up to 150m
Alarm Current: 150mA
Standby Current: 35mA
Static Current: 10uA
Power Supply: Lithium Battery A 3V
Dimensions (Sensor): 69.5mm(L) * 21.2mm(W) * 19.5mm(H)
Dimensions (Probe): 34.5mm(L) * 10mm(W) * 13.2mm(H)

PIR Sensor

WIFI Frequency: 2.4Ghz
Detection distance: 12m (MAX)
Detection Angle: 90°
Area Coverage: 12m x 12m
Area Coverage Height: 2.5m
Transmitting Distance: Up to 150m
Working Current: 35mA
Quiescent Current: 20uA
Pet Immunity: 25Kg
Heat-Beat Report: Every 2 Hours
Wireless Frequency: 433MHz
Operating Temperature: 10°C ~ 60°C
Storage Temperature: 60°C
Power Supply: Lithium Battery CR123A DC 3V
Dimensions: 70mm(L) * 50mm(W) * 35mm(D)

Security Camera

Image Sensor: 2Mpx CMOS Sensor
Aperture: 2.8mm@F1.4 / 100°
Lens: F2.8 aperture, View angle 100°
Resolution: Full HD 1920x1080P
Installation Height: 2~5m
Mirror Head:3.6mm Industrial Lens
Network Interface: 10M/100M Adaptive Network Interface
WIFI Configuration: Program on Smartphone
WIFI Support ( up to 50 meters in open area) 2.4 GHz～2.4835 GHz
Infrared Night Vision Distance: Up to 8m
Micro SD Card Support: 128GB (MAX)
Operating Temperature: -5~55°C
Power Source: DC Power Adapter 5V
Dimensions: 192x63x125mm (L x W x D)
Weight: 315g

Remote Controller

Wireless Frequency: 433MHz
Transmitting Distance: 100m
Working Current: 30mA
Quiescent Current: 3uA
Operating Temperature: -10°C ~ +60°C
Humidity Level: 80%
Power Supply: Lithium Battery CR2450 3V
Dimensions: 58mm(L) * 31mm(W) * 9.5mm(H)

Frequently Asked Questions

Do I need a SIM card for this to work?

No. The hub works over your home WiFi or a wired ethernet connection on its own. The SIM is what keeps it reporting when the power or the broadband goes down, which is the main reason to buy this version rather than a WiFi-only kit.

Will my dog set the alarm off?

The PIR sensors ignore animals up to 25 kg. A large dog above that weight can still trigger them, so mount the sensor higher and angle it across the room rather than down at floor level.

How many extra sensors can I add?

The hub supports up to 96 wireless devices. Extra door and window contacts, PIR sensors, smoke detectors and cameras all pair the same way from the app.

Does the camera keep recording if the internet drops?

Yes. It records to its own microSD card locally, and the hub relays alarm images over the 4G SIM when the fixed connection is unavailable.

Can I install this myself or do I need an electrician?

Yourself. Everything is wireless apart from the hub's power adapter and the optional ethernet cable. Sensors mount with screws or the supplied tape and pair from the app.

Is it legal to run cameras and sensors at my own property in New Zealand?

Yes. You can monitor your own home and your own boundary, and you can record footage for your own security. Keep the camera pointed at your property rather than a neighbour's windows or the interior of their home, and tell anyone living or working there that the system is running. A business recording people must also follow the Privacy Act 2020.
