Off-Grid 4G Solar Security System - Single SIM, 4 Cameras 2K

Off-Grid 4G Solar Security System - Single SIM, 4 Cameras 2K

Name: Off-Grid 4G Solar Security System - Single SIM, 4 Cameras 2K
Brand: VIMEL
SKU: VIM-SOL4WIFI4
Price: 824.0 NZD
Availability: InStock

In Stock 27 reviews Model: VIM-SOL4WIFI4

$824.00 NZD

Quantity

Key Specs

Resolution

2K QHD

Battery Life

2 to 3 Month

Connectivity

WIFI, no SIM

Storage

microSD 256 GB

Night Vision

Up To 30m

Delivery ETA 28 August Delivery Info Pay Options

Australian Stock Fast Sydney Dispatch

Safe and Secure Transaction

Trusted Delivery Service

Discreet Packing and Delivery
Hassle-Free Warranty
Local Australian Customer Support

Accessories

SAM-128GB

Samsung 128GB Microsd class 10 EVO

Add to cart

$77.00

NZD

$77.00

Added to cart

SAM-64GB-BULK

Samsung 64GB Microsd class 10 EVO

Add to cart

$44.00

NZD

$44.00

Added to cart

Have a Question? Chat Now or Book a Call

Description

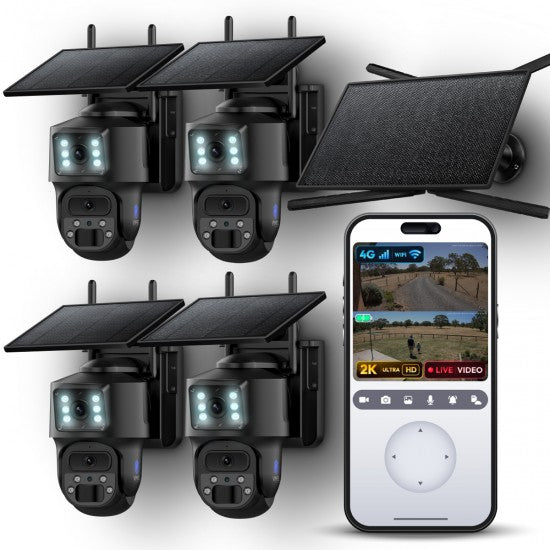

Remote sites need cameras where there is no mains power and no internet. This four-camera kit puts a 120° wide-angle lens and an 8mm PTZ lens on every camera, giving you the scene and the detail at the same time. One 4G SIM in the solar-powered hub runs the whole system off-grid – no mains, no router, no separate NVR.

Features

Dual-Lens Cameras – Wide and PTZ on Every Unit – Each camera has a 120° wide-angle lens and an 8mm PTZ lens. View both feeds simultaneously in the app – the wide lens shows the full scene while the PTZ shows detail at distance.

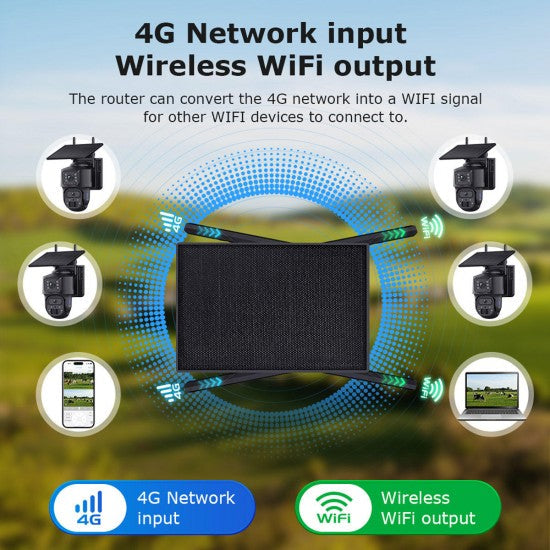

One 4G SIM Runs All Four Cameras – Insert a single Micro SIM into the solar hub. The hub creates its own private WiFi network and all four cameras join automatically at up to 50 metres. One data plan covers the whole kit – no per-camera SIMs, no home internet, no router required.
Solar Hub With Five-Day Battery Backup – 10W solar panel charges a 20,100mAh battery bank inside the hub. Runs more than 120 hours without sun. No mains power, no generator, no electrician.
Tap Wide-Angle, PTZ Follows – Tap any point on the wide-angle feed and the PTZ lens automatically aims at that location. Identify a person at the gate from the overview, zoom in without switching cameras.
Human Detection Reduces False Alerts – PIR sensor detects body heat at up to 10 metres. Filters wind, rain, and animals. Push notifications to your phone within seconds of a human trigger.
2K Recording to Individual SD Cards – Each camera records 2304 × 1296 at 15fps to its own micro SD card (up to 128GB per camera). No centralised recorder – footage stays on each camera independently.
Colour and IR Night Vision – Infrared mode reaches 20 metres in complete darkness. White LED colour mode reaches 10 metres. Switch between modes in the app based on whether you want covert monitoring or visible deterrence.
Two-Way Audio on All Four Cameras – Waterproof microphone and speaker built into each unit. Challenge intruders, communicate with staff on site, or confirm a delivery – all from your phone.

Applications

Where This System Works

Remote Property or Farm

No power lines reaching the boundary fence. No internet past the house. Gates, sheds, and water tanks sit hundreds of metres from anywhere with infrastructure. Mount the hub centrally with clear sky for the solar panel, insert a 4G SIM, and place cameras at up to 50 metres from the hub. Each camera runs on its own 5W solar panel and 7,800mAh battery – no cables between any component. The dual lens gives you a wide overview of the gate plus PTZ detail on anyone approaching.

Construction Site or Temporary Depot

Tools and materials go missing after hours. The site moves when the job finishes. This system deploys in an afternoon and relocates when the project does – no trenching, no electrician, no internet contract. Human detection sends phone alerts when someone enters after hours. Four cameras from one hub covers the full perimeter from a single mounting point.

Loading Dock or Yard Beyond WiFi Reach

Buildings between the office and the yard kill WiFi signal, and trenching cable for a network drop isn't worth the cost on a leased site. Mount the solar hub on a yard light pole or shed corner with its own 4G SIM. Cover the loading dock, the truck parking, the storage container, and the rear gate from four cameras streaming to your phone over 4G. No back-office uplink, no buried cable, no electrician.

How it Works

Mount – Fix the solar hub to a wall or eave with clear sky for the 10W panel. Mount cameras within 30–50 metres of the hub, each with its own 5W solar panel angled toward the sun.
Connect – Insert a 4G Micro SIM into the hub and follow the in-app setup prompt to activate the data connection. Cameras connect to the hub's private WiFi network automatically via QR code pairing – no router or home internet needed.
Monitor – Open the UBOX app on iOS or Android. Quad live view shows all four cameras. Tap any feed for full screen, PTZ control, two-way audio, and playback. Push alerts arrive within seconds of human detection.

Specifications

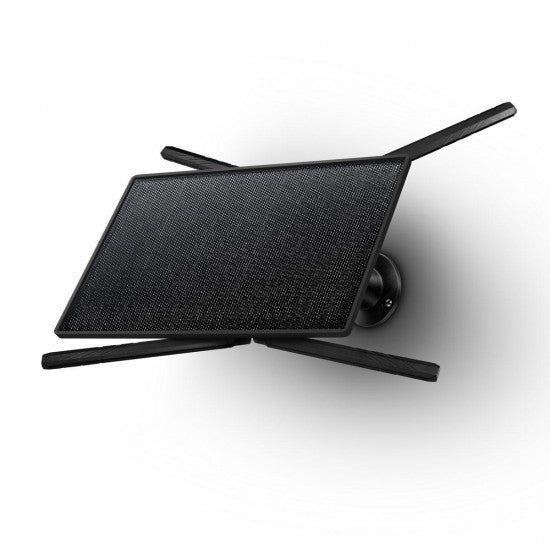

Solar 4G/WiFi Hub

Model: VIM-SOL4WIFI4
Hub Internet (WAN): 4G LTE CAT4 only (150Mbps DL / 50Mbps UL) – single Micro SIM required (not included)
4G Bands: FDD B1/B3/B5/B7/B8/B20/B28, TDD B38/B40/B41, 3G B1/B5/B8

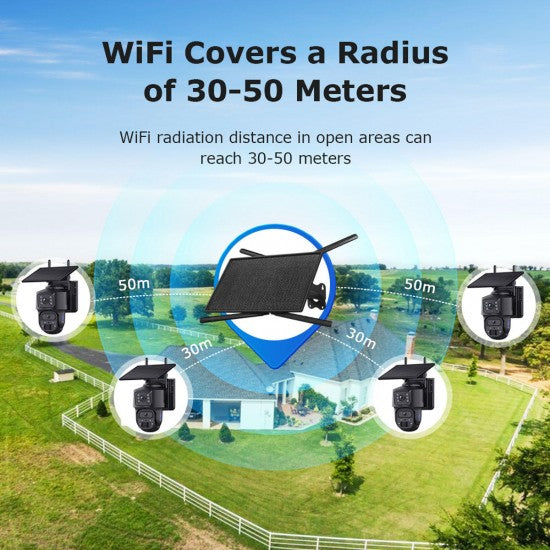

Hub-to-Cameras (LAN): Private WiFi 2.4GHz 802.11 b/g/n, 30–50m radius (open area). Hub broadcasts its own WiFi network for cameras only – does not connect to a home router.
Max Connected Devices: 10 (4 cameras + viewing devices)

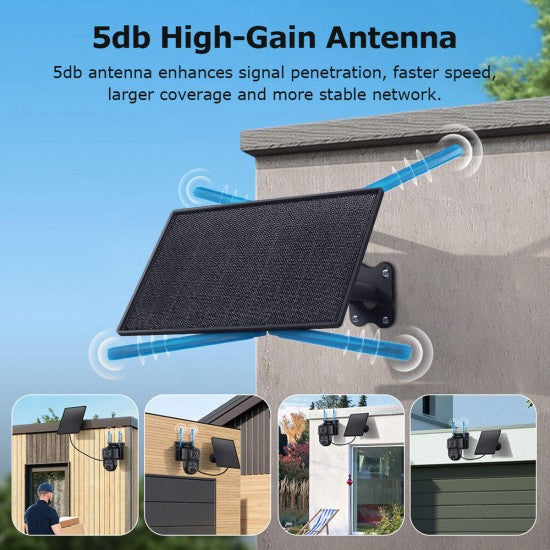

Antennas: 4 × 5dB high-gain (2 WiFi + 2 4G)
Solar Panel: 10W (expandable to 20W)
Battery: 20,100mAh (6 × 18650 lithium, replaceable)
Battery Life: 120+ hours without sun (five days)
Backup Charging: Type-C 5V/2A

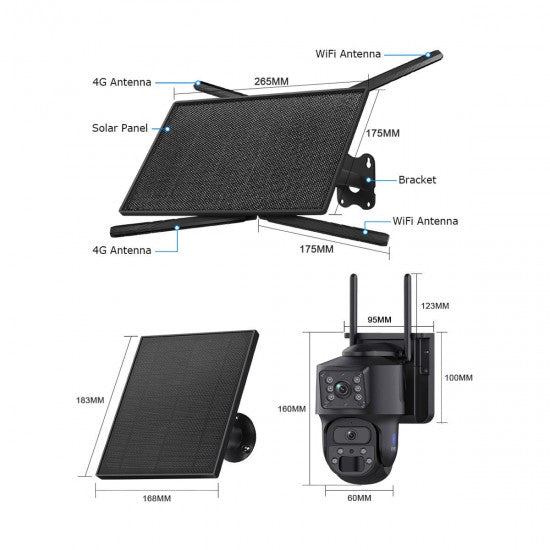

Dimensions: 265 × 175mm (panel face)

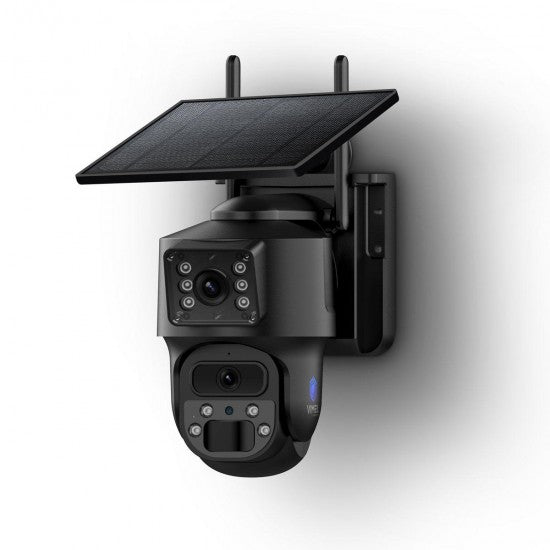

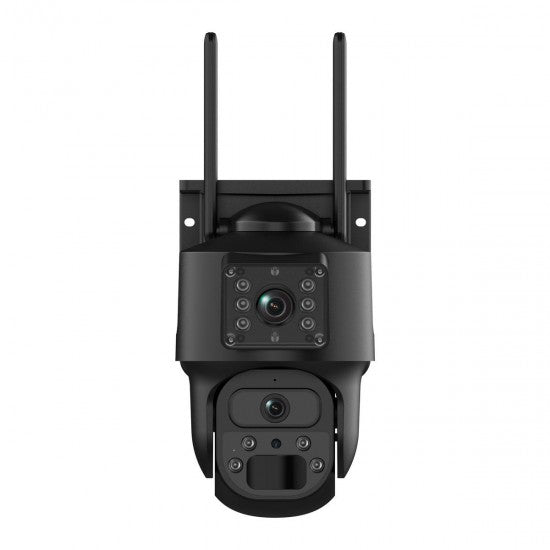

Dual-Lens PTZ Cameras (×4)

Sensor: 3 × 1/3" CMOS
Resolution: 6MP combined (3MP + 3MP) – 2304 × 1296 per lens @ 15fps
Video Encoding: H.264 / H.265
Wide-Angle Lens: 2.8mm, 120° FOV (fixed)
PTZ Lens: 8mm, 43° FOV
Pan/Tilt: 355° horizontal, 90° vertical
Presets: Programmable positions with guard tour
Linked View: Tap wide-angle feed to direct PTZ aim
Detection: PIR + human detection, 8–10m range, 100° angle
Night Vision: IR to 20m (B&W) + white LED to 10m (colour), 10 × dual-core LEDs
Audio: Two-way full duplex (waterproof microphone + speaker)

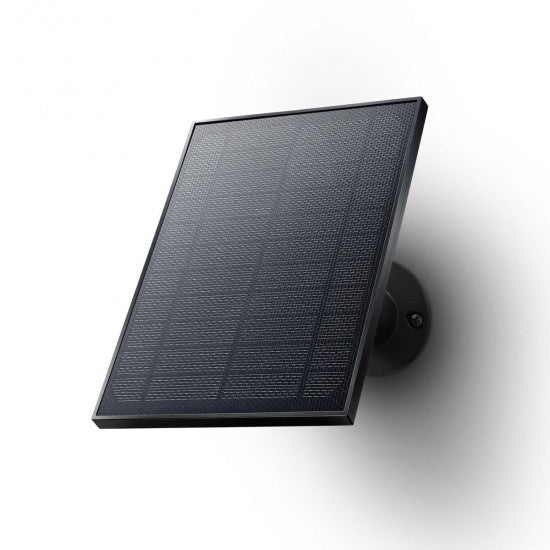

Solar Panel: 5W per camera
Battery: 7,800mAh per camera
Storage: Micro SD up to 128GB per camera (not included) + optional cloud
Weatherproofing: IP65
Operating Temperature: -20°C to +60°C
Camera Dimensions: 160 × 95 × 100mm
Solar Panel Dimensions: 183 × 168mm

App and Connectivity

App: UBOX (iOS + Android)
Pairing: QR code + sound wave
Live View: Single camera or quad view
Recording Modes: Motion-triggered (5s/10s/20s intervals) or continuous
Playback: Event-based timeline + cloud playback

User Review

Anthony M. Brisbane, Australia★★★★☆

Fast delivery. Works better than expected.

Sarah J. Sydney, Australia★★★★★

Excellent quality and fast shipping.

Michael T. Melbourne, Australia★★★★★

Very impressed with the product.

Emma L. Perth, Australia★★★★★

Highly recommended. Very fast service.

Daniel K. Adelaide, Australia★★★★★

Excellent quality. Exactly what I needed.

Olivia W. Canberra, Australia★★★★★

Fast shipping and discreet packaging.

James R. Hobart, Australia★★★★★

Very satisfied with the purchase.

Frequently Asked Questions?

1. Do I need a SIM card to use this system?

Yes. The hub uses a single 4G Micro SIM to provide internet to all four cameras. The hub does not connect to a home WiFi router – it creates its own private WiFi network for the cameras and uses 4G for internet to your phone. Choose any New Zealandn carrier (Telstra, Optus, Vodafone, or an MVNO) with enough data for your viewing habits (typically $10–15/month for occasional motion alerts and short live-view sessions).

2. How far can the cameras be from the hub?

Up to 50 metres in open areas. Walls, metal structures, and dense vegetation reduce range. Position the hub centrally for best coverage. All four cameras must be within range of the hub's WiFi signal.

3. Does each camera need its own SD card?

Yes. The hub is a router, not a recorder – it provides the network connection but does not store footage. Each camera records independently to its own micro SD card (up to 128GB, sold separately). If you want all four cameras recording, you need four SD cards.

4. What happens during extended cloudy weather?

The hub's 20,100mAh battery runs for more than 120 hours (five days) without any solar input. Each camera has a 7,800mAh battery with its own 5W solar panel. In prolonged overcast conditions, the hub accepts Type-C 5V/2A backup charging. The system adjusts recording frequency automatically to conserve power when battery levels drop.

5. Can the hub connect to my home WiFi router instead of using 4G?

No. The hub is a 4G-only device – it uses one Micro SIM for internet and creates its own private WiFi network for the cameras. If you have home WiFi at the site and want to avoid 4G data costs, see our WiFi-uplink model (VIM-SOL4WIFI3, 500m hub, no SIM required) – it uses your existing router instead. For genuinely off-grid sites where no internet exists, this 4G system is the right fit.

6. Is the night vision visible?

Two modes. Infrared (IR) night vision uses 850nm LEDs that produce a faint red glow visible at close range in complete darkness – reaches 20 metres. Colour night vision uses white LEDs that are clearly visible and illuminate the area – reaches 10 metres. Pick the mode in the app to suit the use case – IR for covert monitoring, white LEDs for active deterrence.

What's in the Box

1 × Solar 4G/WiFi Hub with 10W solar panel
4 × Dual-Lens PTZ Cameras
4 × 5W Camera Solar Panels
Mounting brackets and hardware (hub + 4 cameras + 4 solar panels)
1 × USB-C charging cable
1 × User manual

Not included: 4G Micro SIM card (purchase separately with a data plan from Telstra, Optus, Vodafone, or any New Zealandn MVNO). 4 × micro SD cards (each camera supports up to 128GB – sold separately).
