Name: 4G House Alarm System with Smoke Detector, PIR & Door Sensors
Brand: VIMEL
SKU: VIM-ALARM4G-B
Price: 489.0 NZD
Availability: InStock

4G House Alarm System with Smoke Detector, PIR & Door Sensors

$489.00 NZD

Quantity

Key Specs

Network

4G SIM and 2.4GHz WiFi

Fire Detection

Photoelectric smoke sensor

Motion Detection

12 m PIR, 25 kg pet immunity

Siren

80dB built into the hub

Expansion

Up to 96 wireless devices

Backup Power

3000mAh rechargeable

Estimated delivery 10 to 11 November Delivery Info Pay Options

Express Shipping, 2 to 3 Business Days

Safe and Secure Transaction

Tracked and Signed For

Discreet Packing and Delivery
Hassle-Free Warranty
Support From Real Specialists

Accessories

VIM-SECCAlarm System Camera 1080p, IP66, Night Vision & Local Recording $89.00
VIM-WDSENSORDoor and Window Sensor for Alarm Hub, 150m Link & Tamper Alert $39.00
VIM-SMOKEIPWireless Smoke Detector for Alarm Hub, 85dB & 3 Year Battery $59.00
VIM-PIRSPIR Motion Sensor for Alarm Hub, 12m Range & Pet Immune $39.00
VIM-IPCAMS4KPoE Security Camera 4K, ONVIF, 4G Backup, Siren & Floodlight $209.00

Add what you need. It goes straight to your cart.

Have a Question? Chat Now or Call Us

Description

A fire that starts while the house is empty has hours to spread before anyone knows. A smoke alarm that only screams into an empty hallway does not help.

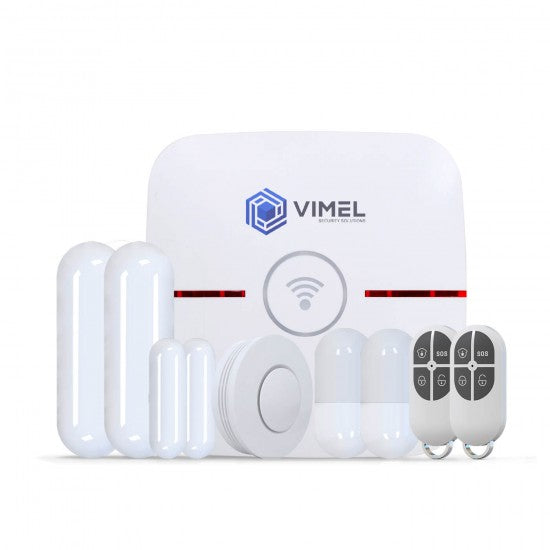

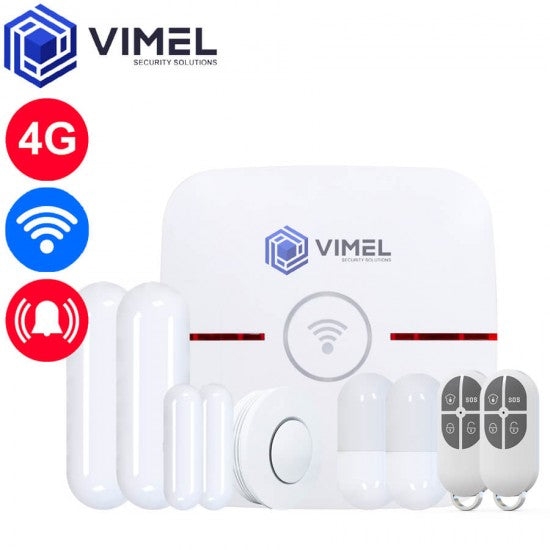

The VIM-ALARM4G-B kit puts intrusion and fire on the same hub. Two door and window contacts, two pet-friendly PIR sensors and a photoelectric smoke detector all report to a hub that runs on both a mobile SIM and your WiFi, so the alert reaches your phone whether or not the broadband is up. Two keyring remotes arm and disarm the system, and the hub takes up to 96 devices as you expand.

Features

Central Hub

100% Vimel Wireless System
DIY Installation - Easy Installation
ONVIF Support - Connect other cameras to the system
Dual Network Support - 4G + WIFI
Direct Router Connection - Ethernet Cable
Install SIM Card to Access 4G Network
Access Remotely From Anywhere and Anytime
Unlike WIFI system, 4G+WIFI system can send alert messages even power is cut and no WIFI connection
Alarm Trigger - SIM Relays Images to the Cloud from up to 4 cameras when the Internet connection is disabled
Connect Remotely and Monitor LIVE using your Mobile Phone
Receive Alarm Notifications directly to your Smart Phone
Operate and Modify the Alarm System using Application (Android / iOS)
Loud Siren - Two Ways of Audio Communication (Speaker + Microphone)
Wall Mount Support
Backup Rechargeable Batteries in case of power outage
Window/Door Sensor
PIR Sensor
Smoke Detector
Remote Controller

Applications

Real-World Scenarios

A Rental Property You Cannot Check Often

Your investment property sits empty between tenants and you are the person liable if something goes wrong in it.

The smoke detector reports to the hub over 433MHz and the hub pushes the alert straight to your phone on 4G, so you hear about a fire without depending on the property's broadband being connected. The same hub covers the doors and windows while the place is unoccupied.

The Family Home Overnight

Everyone is asleep upstairs. A fault in the kitchen starts smouldering at two in the morning.

The detector sounds an 85dB local alarm to wake the house and alerts every phone paired to the hub at the same time, so a parent staying elsewhere knows as well. Arm the perimeter zone at night and the door contacts stay live while people move around inside.

A Small Business Premises After Closing

The shop is locked at six and nobody is back until morning.

The 433MHz sensors reach the hub through internal walls, and the hub relays over 4G if the shop's connection is down out of hours. You get told about an opened door and about smoke through the same app, on the same alert list.

How it Works

Power the hub, fit a Spark, One NZ or 2degrees SIM, and connect it to the router with the supplied ethernet cable if you want a fixed line as well.
Mount the smoke detector on the ceiling and the contacts and PIR sensors on their entry points, then pair each one to the hub from your phone.
When smoke or an intrusion is detected, the device signals the hub on 433MHz, the hub sounds its siren and alerts every paired phone, using 4G when the broadband is unavailable.

Specifications

Central Hub

WIFI Frequency: 2.4Ghz
WIFI Protocol: IEEE802.11b/g/n
Wireless Network: FSK 433MHz
ONVIF Support
4G Module SIM card: supports Spark, One NZ or 2degrees
Internet Access Distance: 100m
Wireless Devices: 96
Siren Level: 80dB Sound
Alarm Current: 170mA
Standby Current: 100mA
Operating Temperature: -10°C ~ 60°C
Power Supply: Power Adapter 3.7V / Rechargeable Batteries 3000mAH
Dimensions: 150mm(L) * 150mm(W) * 30mm(H)

Window / Door Sensor

Wireless Frequency: 433MHz
Transmitting Distance: Up to 150m
Alarm Current: 150mA
Standby Current: 35mA
Static Current: 10uA
Power Supply: Lithium Battery A 3V
Dimensions (Sensor): 69.5mm(L) * 21.2mm(W) * 19.5mm(H)
Dimensions (Probe): 34.5mm(L) * 10mm(W) * 13.2mm(H)

PIR Sensor

WIFI Frequency: 2.4Ghz
Detection Distance: 12m (MAX)
Detection Angle: 90°
Area Coverage: 12m x 12m
Area Coverage Height: 2.5m
Transmitting Distance: Up to 150m
Working Current: 35mA
Quiescent Current: 20uA
Pet Immunity: 25Kg
Heat-Beat Report: Every 2 Hours
Wireless Frequency: 433MHz
Operating Temperature: 10°C ~ 60°C
Storage Temperature: 60°C
Power Supply: Lithium Battery CR123A DC 3V
Dimensions: 70mm(L) * 50mm(W) * 35mm(D)

Smoke Detector

Installation Height: 2~5m
Network Interface: 10M/100M Adaptive Network Interface
Working Frequency: 433MHz
WIFI Configuration: Program on Smartphone
WIFI Support ( up to 50 meters in open area) 2.4 GHz～2.4835 GHz
Operating Temperature: -5~50°C
Humidity Level: 10%~90%
Power Source: Rechargeable Battery
Standby Mode: 2~3 Years
Dimensions: 108x108x42.5mm (L x W x D)

Remote Controller

Wireless Frequency: 433MHz
Transmitting Distance: 100m
Working Current: 30mA
Quiescent Current: 3uA
Operating Temperature: -10°C ~ +60°C
Humidity Level: 80%
Power Supply: Lithium Battery CR2450 3V
Dimensions: 58mm(L) * 31mm(W) * 9.5mm(H)

Frequently Asked Questions

Does the smoke detector work if the hub is offline?

Yes. It sounds its own local alarm regardless. The hub is what turns that into a notification on your phone.

How long does the smoke detector run between charges?

The rechargeable battery gives two to three years of standby. A buzzer sounds every two hours once it needs charging.

Will my cat trigger the motion sensors?

The PIR sensors ignore animals up to 25 kg, which covers cats and most dogs.

Can I add a camera to this kit later?

Yes. The hub supports ONVIF cameras and up to 96 wireless devices in total, so cameras, extra contacts and more detectors all pair to the same system.

What happens in a power cut?

The hub holds a 3000mAh rechargeable backup battery and keeps reporting over the 4G SIM, so an outage that takes your router down does not take the alarm down with it.

Am I allowed to fit this in a property I rent out?

Yes, and smoke detection in a rental is normally your responsibility as the landlord rather than the tenant's. Give tenants notice before you install anything, keep the sensors to detection rather than recording, and if you later add a camera do not point it at any interior living space.
