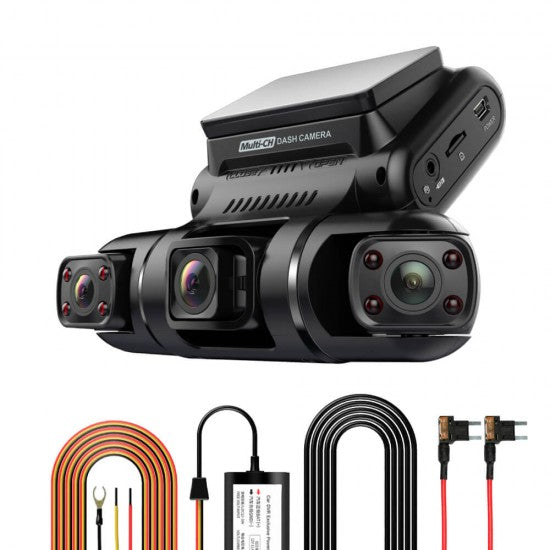

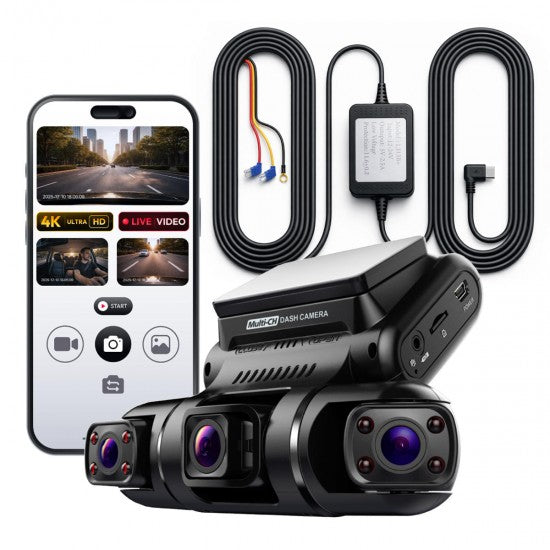

The Vimel VIM-LUXX9H triple channel dash camera with 360° security parking coverage is built to record the front, interior and rear of your vehicle in Full HD 1080p. Three lenses with a 170° viewing angle and an adjustable 180° rotation camera module work with a hardwired kit and 24/7 parking time-lapse recording so incidents are captured while you drive or leave the car parked.
With WiFi app access, dual IR night vision, G-sensor collision detection, motion-triggered recording and a built-in super capacitor, the VIM-LUXX9H is designed for continuous evidence capture without relying on lithium batteries. Seamless loop recording, auto start and shutdown synced with vehicle power and support for micro SD cards up to 256GB help keep journeys documented with minimal user input.
Key Features & Benefits
-
Triple channel Full HD recording Front, interior and rear lenses record simultaneously in Full HD 1080p, giving a complete view of what happens around the vehicle.
-
360° coverage with adjustable lens A 170° viewing angle and 180° rotation camera module help remove blind spots and let you aim the lenses where coverage matters most.
-
24/7 parking surveillance Security parking mode with time-lapse and standard recording keeps watch when the car is parked, capturing activity over long periods.
-
24/7 working time with hardwired kit Continuous operation when connected to the hardwired kit for driving and parking coverage.
-

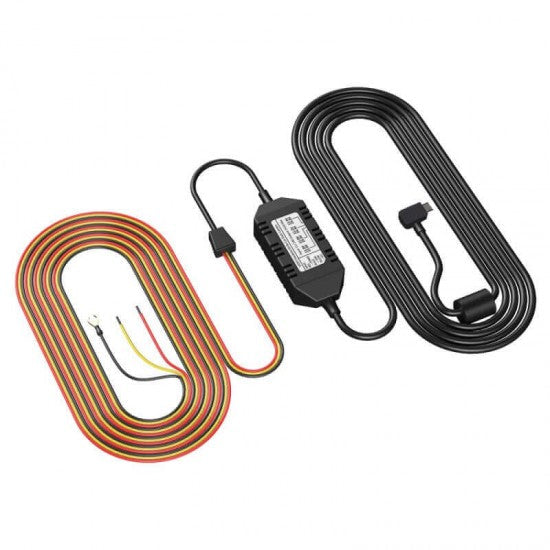

Hardwired power with battery protection The two-way hardwired kit connects to 12V or 24V systems and includes battery discharge protection so continuous recording does not flatten the battery.
-
Smart triggers and night vision G-sensor collision detection, motion detection and dual IR night vision automatically capture events day or night, supported by a heat-tolerant super capacitor.
How This Dash Camera Is Used
This triple channel dash camera suits drivers who want cabin and rear coverage as well as the road ahead, including rideshare and taxi vehicles, family cars and work utes. The 24/7 parking mode with time-lapse recording protects cars left on the street or in shared car parks, while triple 1080p recording, G-sensor triggers and dual IR night vision help document incidents for insurance or incident review.
Technical Specifications
-
Hardwired Kit: Two Ways Connection (Main Car 12V and Fuse Box)
-
Hardwired Kit Vehicle Compatibility: 12/24V Compatible
-
Video Recording: Triple Channel 1920x1080p 30FPS (1080p per Channel)
-
Security Parking Mode: Records Continuously 24/7 with Time Lapse Feature
-
WIFI Connection: Supported
-
Seamless Loop recording: Support
-
Automatic power ON/OFF: Support
-
Memory card: micro SD Max 256GB (Not Included)
-
Audio: Built-in Microphone and Speaker
-
Dimensions (L*W*H): 180mm*130mm*102mm
-
Weight: 300g
-
Camera lens perspective: 170° viewing angle
-
Camera rotation: 180° adjustable lens module
-
Night vision: Dual IR illumination
-
G-Sensor and motion detection: Collision and movement-triggered recording
-
Power storage: Built-in super capacitor
-
Standby mode: Low-power operation during idle periods
-
Engine sync: Auto start/stop recording with vehicle ignition
Packaging Contents
- 1 x Vimel Triple Dash Camera
- 1 x Hardwired Kit
- 1 x Suction Cup Mount
- 1 x 3M Adhesive Mounts
- 1 x Cigarette Lighter Power Cable
- 1 x User Manual / User Guide
Frequently Asked Questions (FAQ)
Can the VIM-LUXX9H record from all three cameras at the same time?
Yes. The system records from the front, interior and rear channels simultaneously in 1920x1080p at 30fps on each channel.
How does the 24/7 parking time-lapse mode work?
When wired to the hardwired kit, the camera can stay powered with a time-lapse parking mode that captures frames over long periods, or use standard parking recording for motion-triggered clips.
What memory card does this dash camera support?
The dash camera supports a micro SD memory card up to 256GB, which is not included and should be a high-quality card suitable for continuous video recording.
Is the dash camera suitable for night driving?
Yes. Dual IR night vision and the wide 170° lens help capture detail in low-light conditions inside and around the vehicle.
Do I need to manually turn the camera on and off?
No. When installed with the hardwired kit, the dash camera can start and stop recording automatically with the vehicle ignition and continue monitoring in parking mode.
Legal Disclaimer
Recording and surveillance laws vary by state and territory. Please check your local requirements, obtain consent where necessary, and use this device only for lawful purposes. This information does not constitute legal advice.
