Name: 4G Signal Booster Repeater Antenna Aerial
Brand: VIMEL
SKU: VIM-4GBOOST
Price: 89.0 NZD
Availability: InStock

4G Signal Booster Repeater Antenna Aerial

$89.00 NZD

Quantity

Key Specs

Network

4G, 698 to 2700MHz

Gain

10 to 12dBi panel

Cable Length

5m lead

Connector

SMA male, adapter included

Weather Rating

Outdoor rated housing

Mounting

Metal bracket and screws

Estimated delivery 10 to 11 November Delivery Info Pay Options

Express Shipping, 2 to 3 Business Days

Safe and Secure Transaction

Tracked and Signed For

Discreet Packing and Delivery
Hassle-Free Warranty
Support From Real Specialists

Have a Question? Chat Now or Call Us

Description

A 4G camera in a gully or under bush often has just enough signal to register on the network and not enough to send a clip. Moving the antenna a few metres higher, and away from the camera body, is usually what fixes it.

This D LENP A27021 panel antenna does exactly that. It covers 698 to 960MHz and 1710 to 2700MHz with 10 to 12dBi of gain and a VSWR under 2.5, and the 5m lead lets you put it on a higher branch or the ridge of a shed while the camera stays where you want the picture. The SMA male connector and the supplied male to female adapter fit most trail cameras, 4G cameras and modems, and the housing is built to stay outside.

Features

Wide 4G frequency support: Covers 698 to 960MHz and 1710 to 2700MHz bands so compatible trail cameras can maintain data links across common 4G networks.
High-gain signal boost: Panel antenna design with 10 to 12dBi gain and VSWR less than 2.5 strengthens weak signals to improve stability and transmission quality.
Flexible 5m installation cable: Included 5m lead allows the antenna to be positioned higher or clearer than the camera for better line-of-sight reception.
Outdoor-ready construction: Rugged, weather-resistant housing is suitable for long-term use in exposed environments including rain, wind and temperature changes.

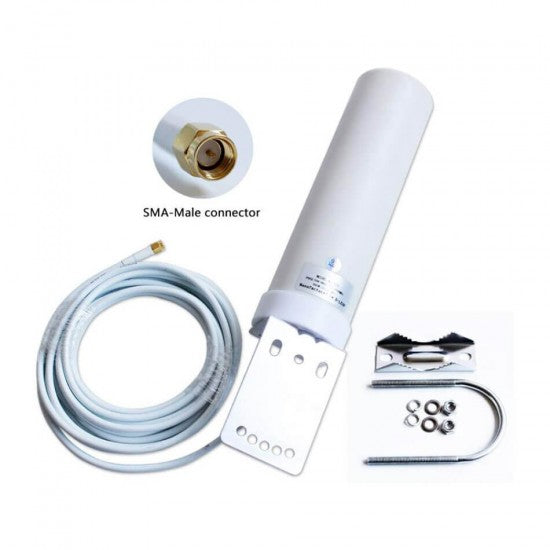

SMA connector and adapter: SMA male connector with supplied SMA male-to-female converter makes it easier to match the booster to different trail camera and modem inputs.

Applications

How This Booster Is Used Outdoors

This 4G signal booster is intended for trail cameras and remote monitoring systems that struggle with marginal mobile coverage around farms, bush tracks, access roads or remote research sites. Mounting the panel in a clear, elevated position and running the 5m cable back to the camera helps pull in stronger 4G signals so images and alerts can be sent more reliably from difficult locations.

How it Works

Find the high point: Pick a spot within 5m of the camera that has the clearest line toward the nearest tower, and away from metal roofing, thick trunks and rock faces.
Mount the panel and aim it: Fix the metal bracket with the supplied screws and point the flat face of the panel toward the tower or the open horizon. The gain comes from direction, so aim matters more than height alone.
Swap the antenna over: Unscrew the camera's own stub antenna, screw the 5m lead onto the SMA port using the supplied adapter if the thread does not match, then check the signal bars in the camera app before you tidy the cable away.

Specifications

Cable Length: 5m
Colour: White
Connector Type: SMA male
VSWR: <2.5
Gain: 10 to 12dBi
Impedance: 50 Ohms
Frequency Range: 698 to 960MHz, 1710 to 2700MHz (4G)
Antenna Type: 4G panel antenna
Model Number: A27021
Brand Name: D-LENP
Converter: SMA male to female adapter included

Frequently Asked Questions

Is this booster compatible with my 4G trail camera?

The booster is suitable for trail cameras and other devices that use 4G bands within 698 to 960MHz and 1710 to 2700MHz and have an SMA antenna connection or compatible adapter.

How should I position the antenna for best performance?

Mount the panel as high and clear as practical, pointing toward the nearest 4G tower or open horizon, and avoid obstructions such as thick trees, metal roofs or rock faces between the booster and the network.

Can this booster create coverage where there is no 4G signal at all?

No. It improves reception in weak-signal areas but cannot provide connectivity in locations with no 4G service. A minimal existing signal is required for it to amplify.

Is the booster suitable for permanent outdoor installation?

Yes. It is designed for outdoor use and built from materials intended to withstand rain, wind and temperature changes when mounted securely.

Do I need any special tools to install it?

Basic hand tools are usually enough to fix the metal mount and route the 5m cable. The SMA connector simply screws onto a matching antenna port on the camera or modem.
