Name: iProtect 1217 RF Detector, 26 Band Analysis & GPS Tracker Mode
Brand: VIMEL
SKU: iProtect-1217
Price: 5999.0 NZD
Availability: InStock

iProtect 1217 RF Detector, 26 Band Analysis & GPS Tracker Mode

$5,999.00 NZD

Quantity

Key Specs

Detection Type

Multi band RF, 26 bands

Frequency Range

600MHz to 6GHz, two inputs

Sensitivity

Average -60dBm

Modes

All bands, group, band, tracker

Battery

6800mAh, up to 5 hours

Weight

750 g without antenna

Estimated delivery 10 to 11 November Delivery Info Pay Options

Express Shipping, 2 to 3 Business Days

Safe and Secure Transaction

Tracked and Signed For

Discreet Packing and Delivery
Hassle-Free Warranty
Support From Real Specialists

Have a Question? Chat Now or Call Us

Description

A single-band detector tells you something is transmitting. A 26 band detector tells you what.

The iProtect 1217 splits the spectrum across 26 bands on two SMA antenna inputs, 600 to 2400MHz on one and 2400 to 6000MHz on the other, and runs in four modes: everything at once, a selected group, one band analysed on its own, or tracker mode for GPS. Forty three alarm thresholds let you work in a noisy building instead of fighting it. Average sensitivity is -60dBm, and the 6800mAh battery gives up to five hours.

Features

26-band coverage: Detects mobile and wireless signals including Wi-Fi 2.4/5 GHz, Bluetooth, GSM, 4G/LTE, and 5G.
Four operating modes: All Bands, Group of selected bands, single Band analysis, and GPS Tracker detection for targeted sweeps.
Dual-antenna flexibility: Two SMA inputs and a high-band directional antenna help locate transmitters above 2400 MHz.
Interference control: 43 threshold levels with visual and audio alarms to manage noisy RF environments.
Selective multi-band identification: Indicates which signal types are present to speed investigation.
Portable power: Built-in rechargeable battery supports up to 5 hours; USB Type-C recharging keeps the unit ready.

Applications

Real-World Scenarios

A Building With Its Own RF Everywhere

An office already has WiFi access points, DECT handsets, printers and everybody's phones. A simple detector alarms constantly and tells you nothing.

Use band mode to isolate the range you care about and set a threshold above the building's own noise floor. Being able to ignore the infrastructure is what makes a sweep in a working office possible.

A Vehicle Check

Tracker mode exists because GPS trackers behave differently from a room bug: they wake, report, and go quiet again.

Run the vehicle in tracker mode over a period rather than a single pass, and use the high-band directional micro-pointer to close in when something registers.

Working Through A Property Room By Room

Group mode lets you set up once and repeat the same scan in every room, which is what makes results comparable.

Two SMA inputs mean the low band rod and the high band pointer are both connected the whole time, so switching between coverage and pinpointing does not mean changing hardware halfway through a sweep.

How it Works

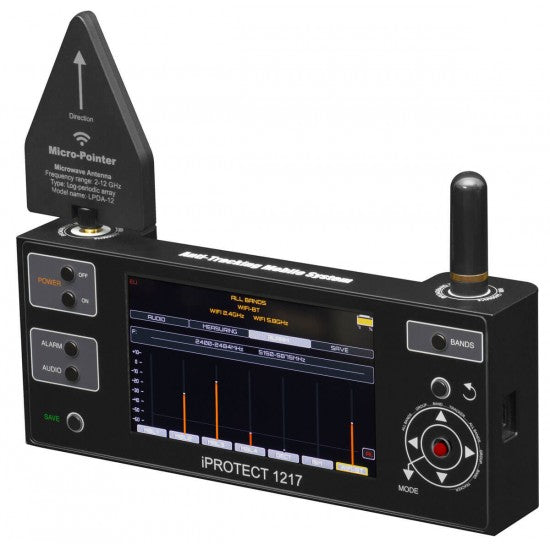

Fit the rod antenna to the low band input and the micro-pointer to the high band input, then start in All Bands mode to see what the environment looks like before you go looking for anything.
Set an alarm threshold above the building's own noise using the 43 available levels, then work through the space in Group or Band mode so you can tell one signal type from another.
When a band lights consistently, switch to the directional micro-pointer and reduce sensitivity as you approach. Use Tracker mode separately for vehicles and bags.

Specifications

Power: 5V, 2A maximum. Use the adapter supplied, or a standard 5V USB charger or power bank rated 2A or less. Do not use fast chargers (USB-C PD, Quick Charge, Super Fast Charging) or high-output power banks: they can damage the device.

Number of Bands: 26
Antenna Inputs: Input 1: SMA, 2400 - 6000MHz | Input 2: SMA, 600 - 2400MHz
Average Sensitivity: -60dBm
Operation Modes: All Bands (Detection on all Bands), Group (Detection on the Selected Group of Bands), Band (Analysis of a Separate Band), Tracker (Detection of GPS Trackers)
Alarm Function: Visual or Audio
Number of Alarm Threshold Levels: 43
Sound Signals: Alarm, Depression of Button
Power Supply Source: USB 5V
Power: Built-in Rechargeable Battery 6800mAH 3.7V
Battery Operational Resource: Up to 5 Hours
Weight: 750g (Without Antenna), 1500g (Packed)
Dimensions 208x86x41mm
Operating Temperature Range -5°C - 50°C
Frequency allocation: Adjustable by country

Frequently Asked Questions

What does it detect?

26 bands covering WiFi at 2.4 and 5GHz, Bluetooth, GSM, 4G LTE, 5G and the signals GPS trackers use, from 600MHz to 6000MHz across the two antenna inputs.

What is the difference between the four modes?

All Bands scans everything at once. Group narrows to a selection you choose. Band analyses one band on its own. Tracker looks specifically for GPS tracker behaviour.

How do I stop it alarming on the office WiFi?

Raise the alarm threshold. There are 43 levels, which is enough resolution to sit just above a building's normal RF and still react to something new.

How long does it run and how does it charge?

Up to five hours on the 6800mAh battery, recharged over USB Type-C.

Is the frequency plan right for New Zealand?

Frequency allocation is adjustable by country, so the band plan can be set for the NZ allocations rather than left on a default.

Am I allowed to sweep a room I am staying in?

Yes. Checking a space you occupy, a hotel room, a rental, your own home, your own car, for devices recording you is your business and nobody else's. Two practical limits worth knowing. If you find something, photograph it in place before you touch it: removing a device destroys the evidence of who put it there. And a detector tells you a signal exists, not who owns it, so treat a hit as a reason to look, not as proof.
