A parking scrape. A hit-and-run. A false claim. If you don’t have footage, you don’t have proof.

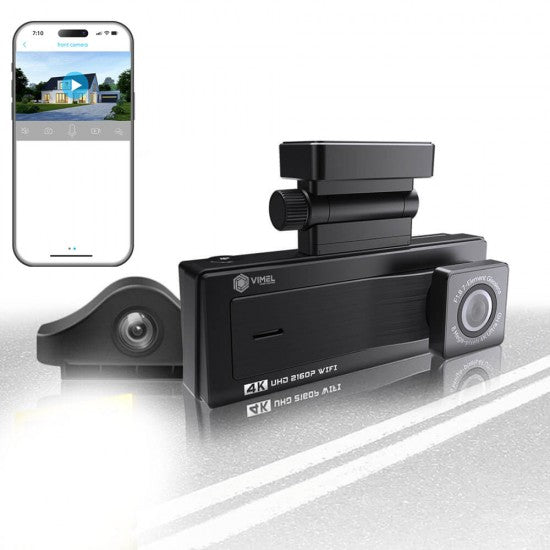

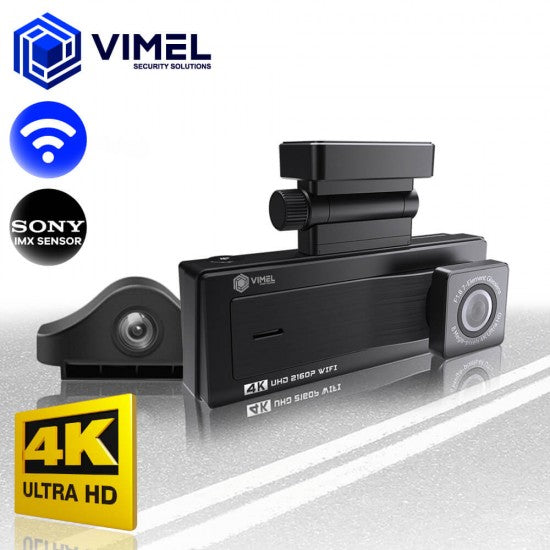

The VIM-LUXX10 is a WiFi dual dash camera that records the road ahead in Ultra HD 4K and adds a rear camera so you can capture what happened in front and behind your vehicle.
Key Features & Benefits
-
Clear 4K evidence up front - Records up to 3840×2160 (4K) @ 30fps so plates, signage, and lane detail are easier to verify after an incident.
-
Heat-safe power design - Built with a super capacitor (not a lithium battery) to reduce heat-related risk in hot vehicle interiors.
-
Night driving clarity - SONY IMX415 (8MP) image sensor plus WDR helps balance bright headlights and dark road edges.
-
Front + rear coverage - Dual camera setup documents both directions, helping with rear-end impacts, tailgating disputes, and reversing incidents.
-
Fast clip access from your phone - Built-in WiFi lets you preview and download footage in-car using the mobile app (iOS / Android).
-
Automatic file protection - G-sensor can lock incident footage, while loop recording keeps the newest files rolling on your microSD card.
-
Route history backup - GPS logger records travel route history to support time/location context when reviewing footage.
Application Scenarios
Accident Evidence & Insurance Disputes
When stories change after a crash, footage becomes the deciding factor. 4K front recording helps preserve fine detail that lower-resolution dash cams can miss.
Rear-End Impacts & Parking Incidents
The rear camera adds coverage for tailgating, rear-end collisions, and carpark bumps. Install inside the cabin or at the trunk depending on your preferred view.
Night Driving & Low-Light Roads
Night footage matters most when visibility is worst. The SONY IMX415 sensor and WDR help keep detail usable in mixed lighting.
How It Works
The front dash camera mounts to your windscreen and connects to vehicle power. It records video to a microSD card, overwriting older clips when storage fills. When you need footage, the camera’s WiFi link lets you connect from your phone inside the car to preview and download files through the app.
Power & Setup (Quick Steps)
-
Option 1: Cigarette-lighter power - Connect the included car charger cable (USB-C) to power the front unit.
-
Option 2: USB-C power - Plug a USB-C cable into the dash camera and connect to a USB car charger or power bank.
-
Rear camera install - Run the rear camera cable to the back of the vehicle and mount inside (3M) or outside trunk area (screws).
Technical Specifications
-
Model: VIM-LUXX10
-
Front viewing angle: 150°
-
Display: IPS 3.16"
-
Video recording modes: 3840×2160 @ 30fps, 2560×1440 @ 30fps, 1920×1080 @ 30fps
-
Video compression: H.264
-
Image sensor: SONY IMX415 (8MP)
-
Chipset: Novatek 96670
-
WiFi: In-car wireless connection
-
Audio: Built-in microphone and speaker
-
Loop recording: Supported
-
Automatic power ON/OFF: Supported (engine sync)
-
Memory card support: Up to 256GB microSD (sold separately)
-
Rear camera cable length: 5.5m
-
Rear camera mounting: Inside car (3M) / Outside trunk (screws)
-
Dimensions (L×W×H): 105.4mm × 42.2mm × 35.5mm
-
Weight: 114g
-
Power socket: USB-C
-
Power interface: 700mA
Lawful Use
Dash cameras are commonly used for accident evidence and vehicle security. Local laws may regulate audio recording inside the cabin and how footage can be used or shared. Always check and follow the road rules and privacy regulations in your state or territory before enabling audio or sharing recordings.
What's in the Box
-
1 × Front dash camera unit
-
1 × Rear camera
-
1 × Car cigarette charger cable (USB-C plug)
-
1 × Mounting bracket
-
1 × Accessories pack (3M sticker)
-
1 × User manual
FAQ
1. Do I need WiFi internet for this dash camera?
No. The camera creates its own WiFi connection for your phone inside the vehicle. It’s used for previewing and downloading clips via the app.
2. Is the microSD card included?
No. You’ll need to add a microSD card (supports up to 256GB).
3. Will it record automatically when I start the car?
Yes. When connected to vehicle power, it can start recording when the engine turns on, then save files and shut down when the engine turns off.
4. Can the rear camera be mounted outside?
Yes. The rear camera supports inside mounting with 3M tape or outside trunk mounting using screws (choose the position that best fits your vehicle).
5. Why does this use a super capacitor instead of a battery?
For safety and reliability. A super capacitor design avoids the heat and swelling risks associated with lithium batteries in hot car interiors.
