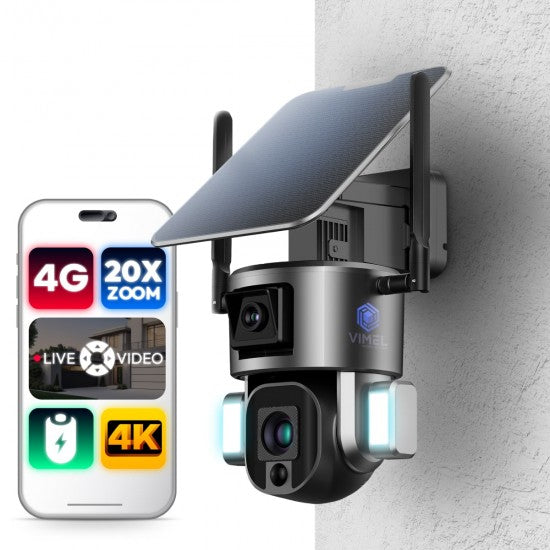

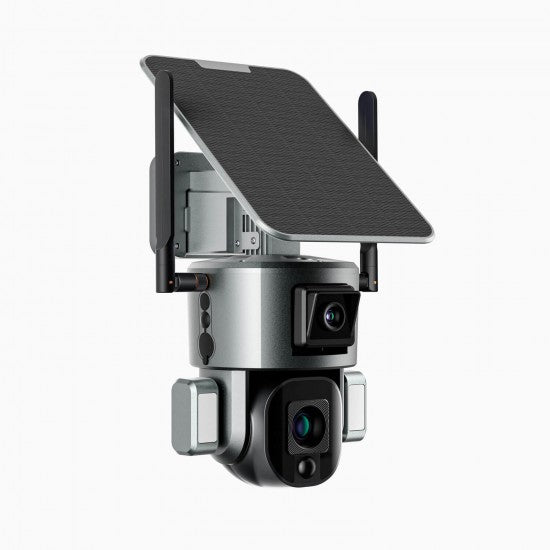

VIM-4GSOL10X is a dual solar 4G security camera system that combines two 4 MP lenses, ULTRA HD 4K dual video, 20X combined zoom and a 9 W adjustable solar panel with 20,000 mAh rechargeable batteries for off-grid surveillance. The PTZ lens pans 355 ° and tilts 90 ° while the fixed lens provides a wide overview, with 4G SIM connectivity, cloud or local micro SD storage and IP66 water resistance for continuous outdoor monitoring on construction areas, yards and remote sites.
The system is designed for cable-free deployment, using solar charging and smart power management to support long standby times, AI human auto tracking and fast PIR motion detection. Dual floodlights, full-colour LED night vision and infrared support help you see detail at night, while the mobile app lets multiple users view live video, receive alert notifications and talk through the built-in microphone and speaker.
Key Features & Benefits
-
Dual 4K lenses and 20X zoom: Two 4 MP sensors deliver 3840x2160p dual video with a PTZ lens offering 10X optical and 10X digital zoom so you can inspect distant detail without losing clarity.
-
Solar-powered 4G operation: An adjustable 9 W solar panel and 4 x 21700 rechargeable batteries (20,000 mAh total) keep the camera running off-grid with smart power modes for up to 8 months of standby.
-
Smart detection and alerts: AI human auto tracking, a fast PIR thermal sensor and auto cruising between detection points focus recording on real movement and send instant pop-up notifications to your phone.
-
Full-colour and infrared night vision: Dual white floodlights, full-colour LED night view and infrared LEDs provide visibility in low light, with up to 50 m white light and up to 40 m IR coverage.
-
Flexible PTZ coverage and access: The PTZ lens rotates remotely while the fixed lens watches a wide area, with dual live view, multi-user access and two-way audio through the iPhone, iPad and Android app.
-
Cloud or local video storage: Choose between cloud storage and local micro SD recording up to 128 GB so you can keep important footage accessible even when you are away from site.+
-
White LED lights for Full Color at night - can be disabled
-
Siren function - activates then motion is detected or can be activated remotely in APP
-
2 Ways Audio - Speak and listen remotely
- Video + Audio Recording simultaneously
Where This Solar 4G System Works Best
This dual solar 4G PTZ camera is suited to exposed outdoor areas and off-grid locations where running mains power and network cabling is difficult but continuous monitoring is required. Mount it using the supplied brackets, insert a compatible 4G SIM and micro SD card, then use the mobile app to view dual live streams, receive AI/PIR alerts and review cloud or local recordings from wherever you are.
Technical Specifications
- 4G Band Frequency: B1 (FDD 2100) / B2 (FDD 1900) / B3 (FDD 1800) / B4 (FDD 1700 / AWS) / B5 (FDD 850) / B7 (FDD 2600) / B8 (FDD 900) / B28 (FDD 700) / B40 (TDD 2300)
- Video Resolution: 3840x2160p Resolution (Dual) 30FPS
- Video Compression: H.265
- Image Sensor: 4MP+4MP Dual Sensor HD CMOS
- Lens: 6mm lens/ 5-50mm
- Zoom: 10X Optical + 10X Digital Zoom
- PTZ Lens: 355 ° Pan / 90 ° Tilt (30°/sec Speed)
- Fixed Lens: 180 ° Manual Pan / 15 ° Tilt
- PIR Sensor Trigger Speed: 0.25s
- Detection Angle: 120 °
- Detection Distance: 12m
- White Flood Light LED: 6pcs 50m
- IR Distance: Up to 40m
- Audio Preset: Built-in Microphone and Speaker
- Power 50% Below: PIR Sensor Motion Detection Recording
- Power 50% Above 24/7 Video Recording
- Solar Energy Consumption: 9W
- Solar Panel Extension Cable length: 2m
- Batteries: Rechargeable 4pcs*(21700-5000mAH) - 20000mAh (INCLUDED)
- Memory Card Support: Micro SD Card up to 128GB
- Cloud Recording: Support
- OS Support: iOS, Android
- Access on Android phones or iPhone - Watch and playback/download remotely Footage & adjust all settings
- Weight: 1.8kg
Packaging Contents
- 1 x 4G Security Camera
- 2 x Antenna
- 1 x Solar Panel
- 1 x Solar Panel Bracket
- 1 x Mounting Accessories (Screws, Wrench)
- 1 x Iron Wall Bracket
- 1 x Type-C USB Charger Cable
- 1 x User Manual / User Guide
Frequently Asked Questions (FAQ)
Do I need Wi-Fi to use this camera?
This system is designed to run on a 4G SIM card, so you can monitor sites that do not have fixed internet. Simply insert a compatible SIM and use the app for live view and playback.
How long can the camera run on solar power and batteries?
The adjustable 9 W solar panel and 20,000 mAh rechargeable battery pack support smart power modes with sustainable standby of up to 8 months, depending on sunlight and recording activity.
What storage options are available for video footage?
You can record to a micro SD card up to 128 GB and also use cloud storage. Both options can be managed through the mobile app for reviewing and downloading recordings.
How do the dual lenses help with monitoring?
The fixed lens provides a wide overview while the PTZ lens offers 355 ° pan, 90 ° tilt and 20X combined zoom, so you can watch the whole area and zoom in on specific activity at the same time.
Is this camera suitable for outdoor installation?
Yes. The IP66-rated construction, dual floodlights, full-colour LED night vision and infrared support are designed for continuous outdoor use in varying weather conditions.
Legal Disclaimer
Recording and surveillance laws vary by state and territory. Please check your local requirements, obtain consent where necessary, and use this device only for lawful purposes. This information does not constitute legal advice.
