All-Day Underwater Fishing Camera Kit - 220° Lens, 12hr Battery

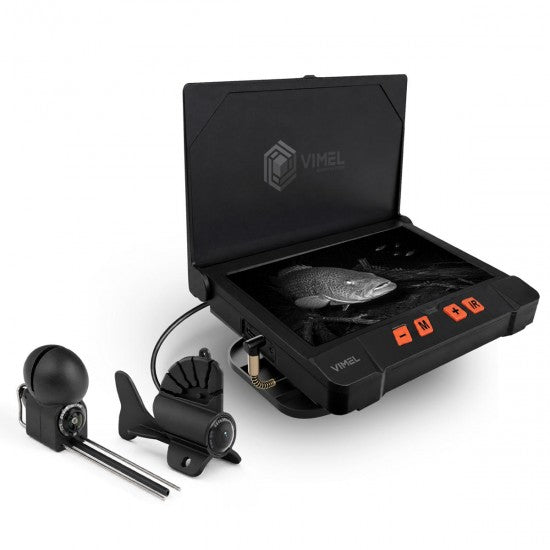

You drop the sphere-base camera onto rock structure at 18 metres and the 220° fisheye fills the screen with bait pods stacking on the reef shoulder. Twelve infrared LEDs around the lens cut the early-morning shadow. Rear fins hold the lens forward as the drift swings the cable, no spinning, no constant resetting. Above the deck, the 7-inch sun-hooded monitor reads clear in direct midday glare. The 10000mAh all-day battery runs the full charter without a recharge break, and Type-C top-up between sessions keeps the rig ready for back-to-back trips.

Key Features & Pro Tradeoffs

• See the Full Forward Water Column - 220° fisheye sensor captures the column ahead of the camera, not a narrow viewing window. Useful when scouting kelp beds or marking how fish are stacking on structure. 720p live video, no recording.

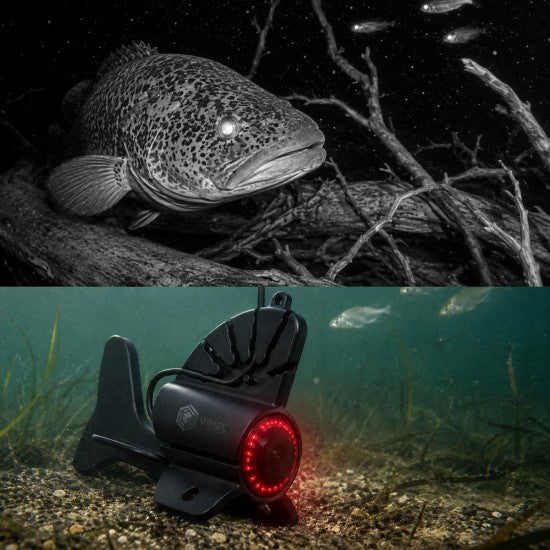

• Scout in Zero Light - White-light array of 12 IR LEDs gives zero-light night vision. In algae-bloom or stirred sediment, drop intensity to 50% to prevent backscatter glare off suspended particles. Effective range 2 to 3 metres in clear water.
• Lens Stays Forward in Current - V2 housing upgrade. The sphere base provides smooth pivot at the mount point; rear fins hold the lens forward as current pushes the cable. Eliminates the camera-spin problem that turns budget housings into ceiling-shot guessing games during drift work.
• Submersible to Full Cable Length - IPX68 sealed lens housing, full submersion rating. ABS-PC body, cold-resistant down to minus 20 degrees C, operational up to plus 70 degrees C. Salt-tolerant; rinse with fresh water after every saltwater session to keep the seal clean.
• 30m of Tangle-Resistant Reach - 8 mm PU outer jacket with white-silk inner, 90 kg pull rating. The stiffness resists tangling in mild current. At trolling speeds the drag angles the lens upward, so use for drift or anchor scouting; not for high-speed tow.
• Read the Screen in Midday Sun - 7-inch IPS panel at 1024 x 800, 3000 NIT brightness, rigid flip-up sun hood. Reads in direct midday sun where 400-700 NIT budget screens wash out.
• Cover a Full Charter Without Recharge - 10000mAh extended battery runs 12 hours on default brightness, 25 percent more capacity than the 5-inch sibling kit. Covers a full charter day from launch to dock-in. Type-C charging port accepts USB-C power bank input for mid-session top-up.
• Adapt to Surface or Bottom in Seconds - Two deployment shells, one camera. Floater Cam Shell holds the lens at the surface pointing down for above-cover work; Fish Shell sinks to the bottom with fins for stationary structure scouting. Quick-release U-wire swaps the camera between shells in seconds.

Real-World Scenarios

1. Pre-Charter Dawn Scout

Charter clients are booked for 7am, and the Fish Shell drops at three waypoints in 8 to 18 metres on the productive reef shoulder before sunrise. The 220° lens shows pilchard schools in two of them; the third is empty kelp. As the sun rises over the headland the flip-up sun hood deploys, and the 7-inch screen stays crisp through the morning brief.

2. Midday Charter Operation

At 11am with peak summer sun on a flat ocean, budget fish-cams wash out. The sun hood casts the screen into shadow and the 3000 NIT panel reads from the helm position three metres back. You scout drop-off ledges at 22 metres without leaving the wheel, calling lure choices to the deckhand as the lens picks out trevally moving on structure. Continuous on-time across the four-hour session draws 4500 mAh, less than half the battery.

3. Back-to-Back Charter Days, Type-C Top-Up

Two charters are booked with a lunch turnaround between, and the morning session has drained 6 of the 12 available hours from the battery. During the 45-minute turnaround a 20000mAh USB-C power bank plugs into the monitor's Type-C port and the battery climbs back to full. No swappable cells to fumble, no AC outlet required. The afternoon group gets the same fresh-rig experience as the dawn crew.

How It Works

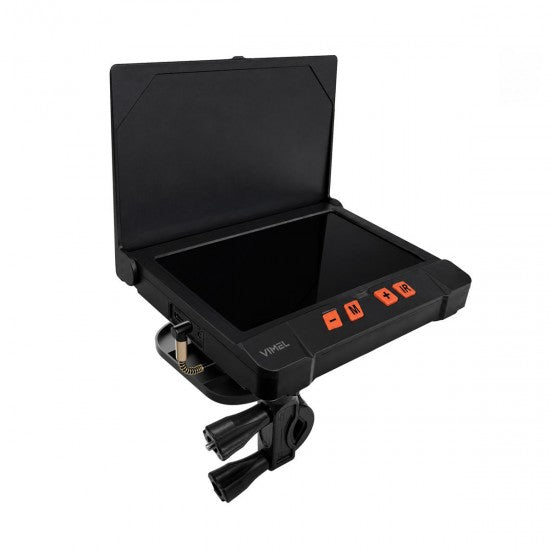

1. Mount - Clamp the Rod Bracket onto the rod handle. The 7-inch panel sits in line of sight.
2. Configure - Choose the shell. Floater Cam Shell holds the camera at the surface, lens pointing down. Fish Shell sinks to the bottom on the 30-metre cable; the rear fins keep the lens forward against current. Quick-release U-wire swaps shells in under 10 seconds.
3. Scout - Drop the camera. The 220° live feed streams instantly to the 7-inch monitor. IR LEDs auto-activate when the ambient light drops; toggle manually via the front-panel IR button for turbid water.

Technical Specifications

Camera and Lens

• Model: VIM-FISHCAM2
• Camera Lens: 220° wide-angle fisheye
• Camera Resolution: 720p HD live feed
• Camera Body: ABS-PC plastic, sphere-base with stabiliser fins
• Waterproofing: IPX68 (full submersion to cable length)
• Lighting: 12 IR LEDs (white-light, adjustable intensity)
• Operating Temperature: minus 20 to plus 70 degrees C

Cable

• Length: 30 metres
• Outer Jacket: 8 mm PU, cold-resistant
• Inner: White-silk shielded core
• Pull Strength: 90 kg rated
• Storage: Hand-wound spool
• Connection: 3.5 mm AV (round port on monitor)

Monitor and Power

• Monitor: 7-inch IPS LCD, 1024 x 800 panel, 3000 NIT brightness
• Sun Hood: Integrated rigid flip-up hood
• Mount Options: Rod Bracket clamp
• Battery: 10000mAh (12-hour runtime)
• Charging: Type-C port, accepts USB-C power-bank input
• Recording: Live-view only (no recording, no SD card)
• Menu Languages: English, Russian, Chinese, Japanese, Korean

Packaging

• Dimensions: 217 x 165 x 78.5 mm
• Weight (gross): 506 g (monitor unit)

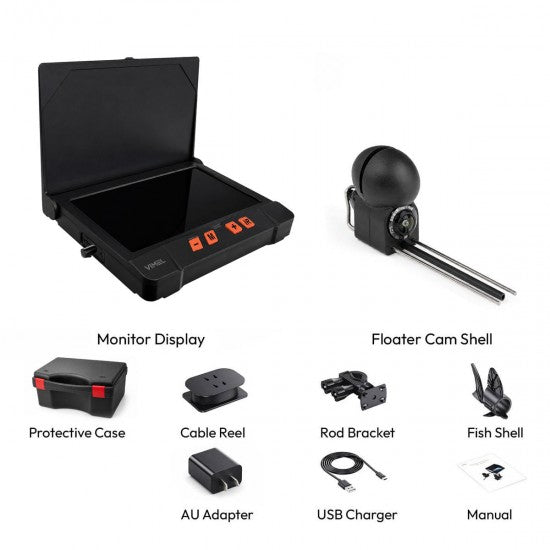

Packaging Contents

• 1 x Underwater Camera (Vimel-branded, sphere-base with stabiliser fins)
• 1 x Monitor Display (7-inch IPS LCD with integrated flip-up sun hood)

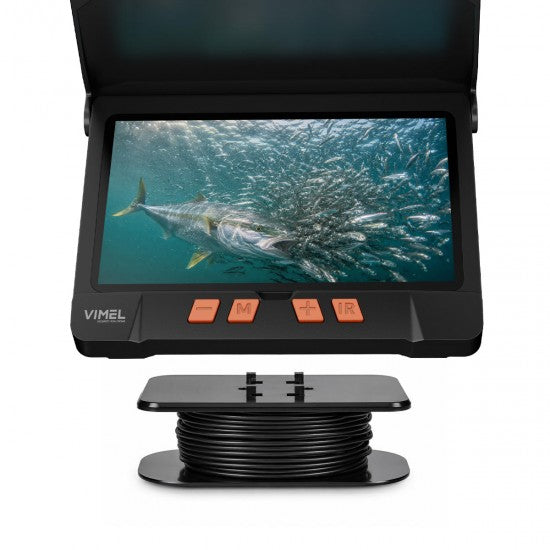

• 1 x Cable Reel (30m hand-wound spool, 8mm PU shielded cable)

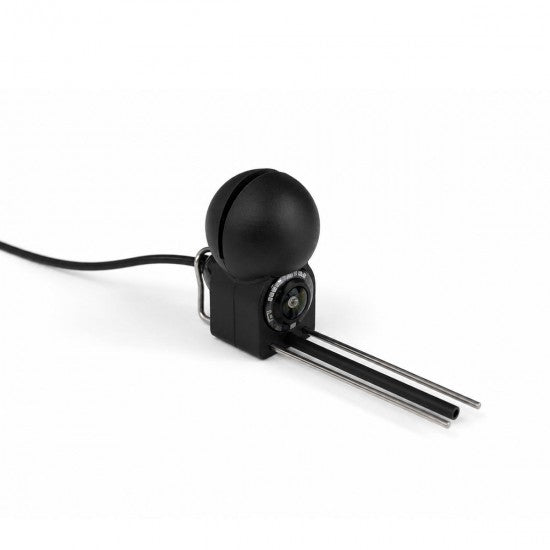

• 1 x Floater Cam Shell (surface-scout housing with foam-ball float and U-wire quick-release)

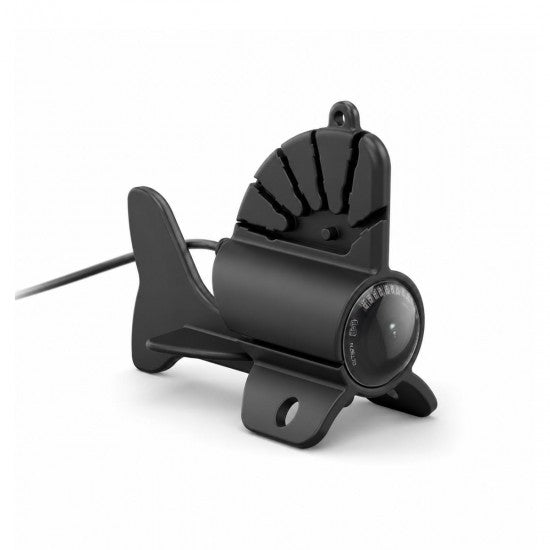

• 1 x Fish Shell (drop-scout housing with stabiliser fins and sinker hole)

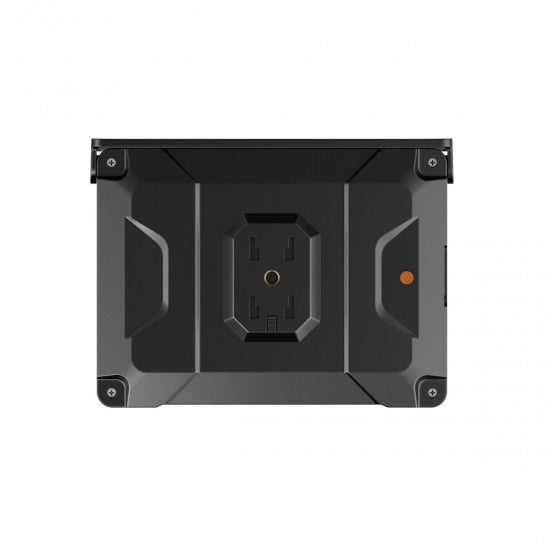

• 1 x Rod Bracket (clamp-style Monitor mount with two grip screws)
• 1 x AU Adapter (240V New Zealandn wall plug)
• 1 x Type-C USB Charger
• 1 x Hard Protective Case (rigid kit case)
• 1 x Manual

Frequently Asked Questions

1. How long does the battery actually last during a charter day?

The 10000mAh internal cell runs roughly 12 hours of continuous on-screen viewing under default brightness. Drop the brightness 20 percent and you stretch to 13-14 hours. Most full-day charters complete with reserve battery. For back-to-back days, plug a 20000mAh USB-C power bank into the Type-C port between sessions and the kit charges in 90 minutes.

2. Can I actually read the screen in direct midday sun?

Yes. The 3000 NIT panel combined with the integrated rigid sun-hood reads from typical helm distance (2-3 metres back) in summer-noon New Zealandn sun. Standard 400-700 NIT budget fish-cam screens wash out at this hour; the sun-hooded high-NIT combination is the deliberate hardware fix.

3. Does the camera stay oriented when the current swings the cable?

Yes, in mild to moderate current. The rear stabiliser fins on the sphere-base housing act as a fixed rudder. As the cable drifts, the fins force the lens forward rather than spinning. At trolling speeds the drag still angles the lens upward, so use for drift or anchor scouting, not high-speed tow.

4. What's the difference between this and the 5-inch sibling kit?

Same camera, lens, IR array, and cable specification. The 7-inch model has a larger 1024 x 800 IPS panel (versus 800 x 480 on the 5-inch), 3000 NIT brightness with integrated sun-hood (versus standard brightness with soft fold-out visors), and 10000mAh battery for 12-hour runtime (versus 8000mAh / 9 hours). Type-C charging replaces the 5-inch unit's USB-5V port.

5. Is this legal for commercial charter operation in New Zealand?

Yes. Underwater fishing cameras are legal for recreational and commercial fishing in AU public waterways. Some marine parks and protected reef zones restrict camera deployment; check the specific zone before launching. Because the unit does not record video or audio, no privacy laws apply.

Legal Disclaimer

This product is intended for fishing scouting in New Zealandn inland and coastal waters. Marine park and reef-protection zones may restrict camera deployment. Always check local regulations on low-impact recording, particularly for unattended equipment or operation in Sanctuary Zones. The unit is not rated for SCUBA diving, hull inspection, or commercial marine surveying.
