Tournament prep day. The sounder marks structure at 15 metres, but a sonar trace alone doesn't show whether it holds bait, kelp cover, or open sand. This wide-angle underwater fishing camera drops a 220° fisheye lens to 30 metres on a 30 kg-rated cable, with live video streaming to a 5-inch IPS monitor. The 9-hour battery covers a full charter day, and the 12 IR LEDs let you keep scouting after the late-afternoon glare drops.
Key Features & Honest Tradeoffs
-
See Forward and Down in One Frame - 220° fisheye captures the full water column ahead of the camera, not a narrow forward window. Useful when surveying kelp beds or marking how fish are stacking on structure.
-
9-Hour Operational Day - 8000 mAh internal battery covers a full charter operation between charges. No swappable cells; bring a USB power bank for back-to-back days.
-

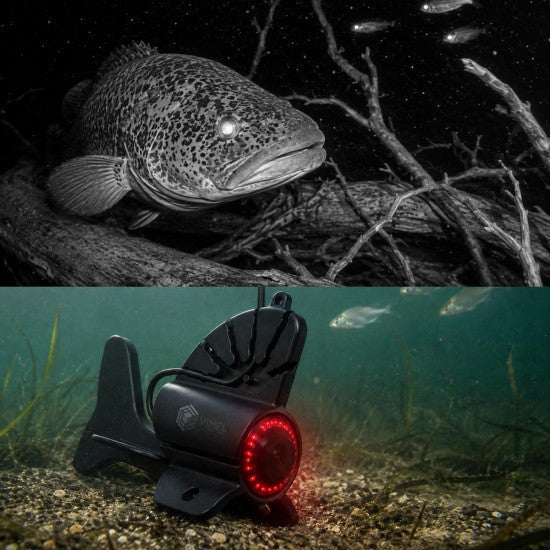

12 IR LEDs for Low-Light and Turbid Water - White-light array around the lens. In algae-bloom or stirred sediment, drop intensity to roughly 50% to prevent backscatter glare off suspended particles.
-
30m Cable, 30 kg Pull Rating - 8 mm PU outer jacket, cold-resistant. The stiffness resists tangling in mild current. At trolling speeds, drag angles the lens upward, so use for drift or anchor scouting.
-
Two Deployment Shells, One Camera - Floater Cam Shell holds the camera at the surface with lens pointing down for above-cover work; Fish Shell sinks to the bottom with stabilizer fins for stationary structure scouting. Quick-release U-wire swaps the camera between shells in seconds.
-
Live-View Only (No Recording) - Streams to the monitor for real-time decisions. No internal storage and no SD card slot. Use a phone or external recorder if you need to document a session.
-
Rod-Mountable Monitor - Round-clamp Rod Bracket locks the 5-inch monitor onto the rod handle. Two grip screws tighten without tools. Lets a skipper or guide reel and scout one-handed.
Real-World Scenarios
1. Charter Pre-Fishing Scout
Clients booked for 7am. You arrive at 5:30am to confirm last week's productive reef shoulder still holds bait. Drop the Fish Shell at three waypoints in 8 to 18 metres. The 220° lens shows pilchard schools in two of them; the third is empty kelp. Adjust the morning plan before the clients hit the water.
2. Tournament Pre-Fishing Day
The day before the tournament you map kelp beds along the southern wall. Switch between Floater Cam Shell (surface above kelp canopy) and Fish Shell (down through the gaps) to chart cover density and where the larger fish are sitting. Mark waypoints in your sounder; no need to repeat the work in the morning.
3. Kayak and Skiff Inshore Work
Small-craft anglers fishing 5 to 15 metre inshore water. Clamp the Rod Bracket onto the rod butt, drop the Fish Shell over the side, check structure without putting down a heavy sonar transducer. The 0.87 kg package weight matters when you're paddling in.
How It Works
-

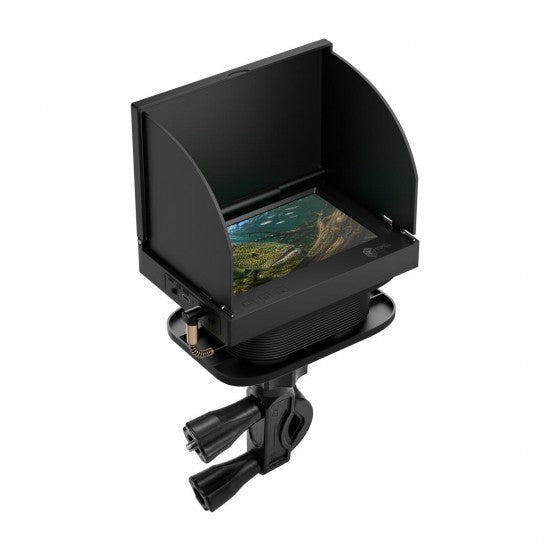

Mount - Clamp the Rod Bracket onto the rod handle. Two grip screws tighten the round clamp. The Monitor sits on top, in line of sight.
-
Configure - Choose the shell. Floater Cam Shell holds the camera at the surface, lens pointing down. Fish Shell sinks to the bottom on the 30-metre cable with stabilizer fins keeping the lens forward.
-
Scout - Drop the camera. The live feed streams instantly to the 5-inch monitor, giving you real-time visual confirmation of what the sounder marked before you commit to dropping lines.
Technical Specifications
Camera and Lens
-
Model: VIM-FISHCAM
-
Camera Lens: 220° wide-angle fisheye
-
Camera Resolution: 720p HD
-
Camera Body: ABS plastic, 70 x 90 x 40 mm, 22 g
-
Waterproofing: IP68 (full submersion to cable length)
-
Lighting: 12 IR LEDs (white-light, adjustable intensity)
Cable
-
Length: 30 metres
-
Outer Jacket: 8 mm PU, cold-resistant
-
Pull Strength: 30 kg rated
-
Storage: Hand-wound spool
-
Connection: AV (3.5 mm BNC)
Monitor and Power
-

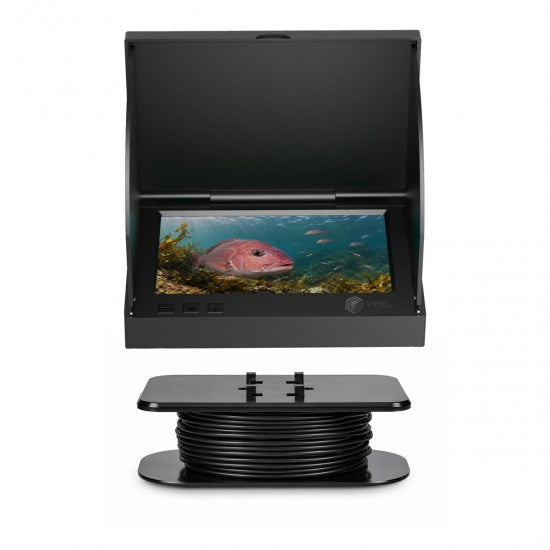

Monitor: 5-inch IPS LCD, 800 x 480 panel, 360° hinge tilt
-
Monitor Dimensions: 140 x 100 x 25 mm
-
Battery: 8000 mAh (9-hour runtime)
-
Charging: USB 5V (1 to 2 A), AU adapter included
-
Recording: Live-view only (no recording, no SD card)
-
Menu Languages: English, Russian, Chinese, Korean, Thai
Packaging
-
Dimensions: 190 x 80 x 240 mm
-
Weight (gross): 0.87 kg

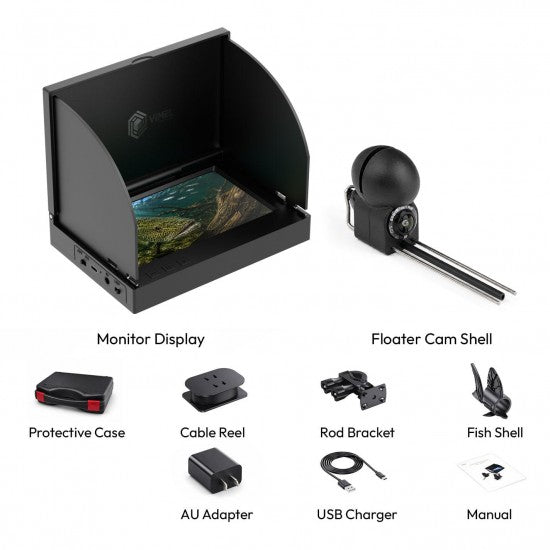

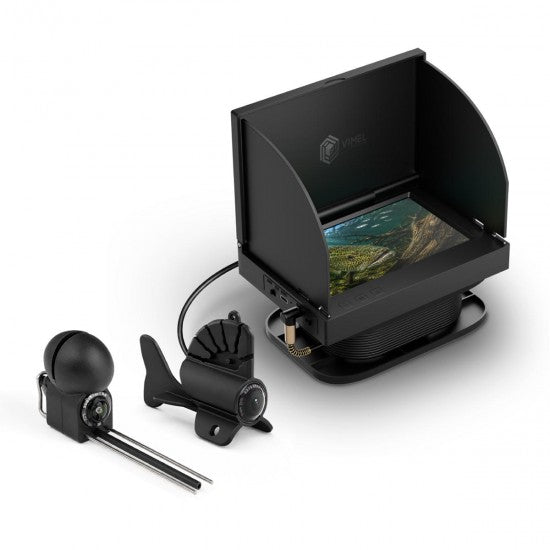

Packaging Contents
- 1 x Underwater Camera (Vimel-branded)
- 1 x Monitor Display (5-inch IPS LCD with fold-out sun visors)
- 1 x Cable Reel (30m hand-wound spool)

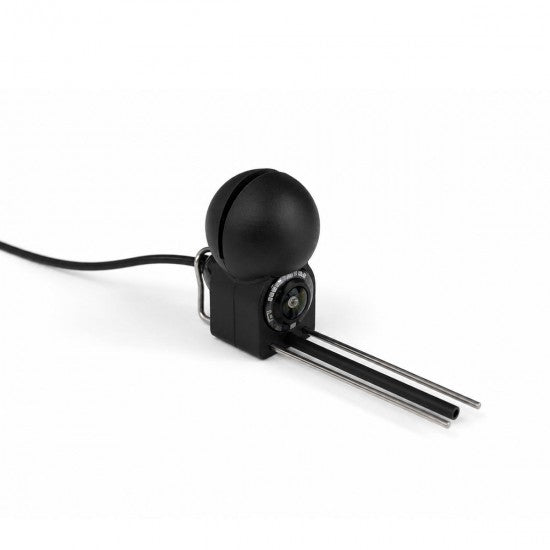

- 1 x Floater Cam Shell (surface scout housing with foam-ball float and U-wire quick-release)

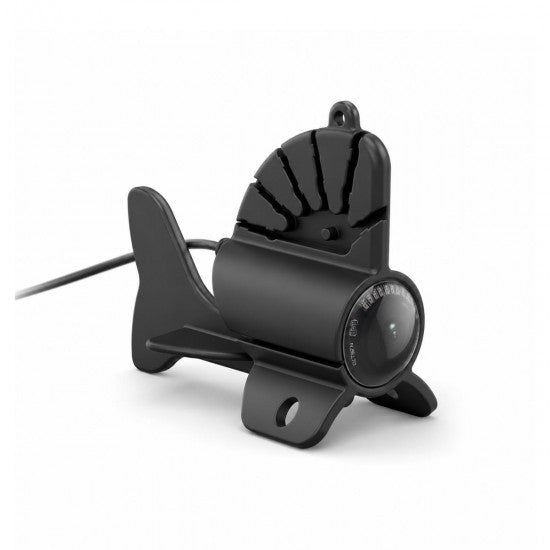

- 1 x Fish Shell (drop-scout housing with stabilizer fins and sinker hole)
- 1 x Rod Bracket (round-clamp Monitor mount with two grip screws)
- 1 x AU Adapter (240V New Zealandn wall plug)
- 1 x USB Charger
- 1 x Protective Case (carry and organiser bag)
- 1 x Manual
Frequently Asked Questions
1. How deep can a fishing camera go?
This unit reaches 30 metres on the supplied cable. The IP68 rating handles full submersion within that depth. For deeper offshore work above 30 metres, the camera is depth-limited by the cable length, not the housing rating; the lens itself would handle pressure at deeper drops.
2. Can you use underwater cameras at night?
Yes. The 12 IR LEDs around the lens provide white-light illumination for low-light and night work. In clear water the array illuminates 2 to 3 metres ahead of the lens. In turbid or murky water, lower the intensity to reduce backscatter.
3. Does this camera record video?
No. Live video streams to the 5-inch monitor only. There is no SD card slot and no internal storage. For documentation, point a phone camera at the monitor or feed the AV out into an external recorder.
4. Will the camera work in murky water?
Yes, with limits. The 12 IR LEDs cut through algae-bloom and stirred sediment to roughly 1 to 2 metres of usable visibility. Sub-1 metre visibility (heavy estuarine mud, post-storm runoff) is at the edge of what the lens resolves.
5. Is this legal for charter operations in New Zealand?
Yes. Underwater fishing cameras are legal for recreational and commercial fishing in AU public waterways. Some marine parks and protected reef zones restrict camera deployment; check the specific zone before launching. Because the camera does not record video or audio, no privacy laws apply.
Legal Disclaimer
This product is intended for fishing scouting in New Zealandn inland and coastal waters. Marine park and reef-protection zones may restrict camera deployment. Always check local regulations on low-impact recording, particularly for unattended equipment or operation in Sanctuary Zones. The unit is not rated for SCUBA diving, hull inspection, or commercial marine surveying.
